A Deep Dive into the 2.5MW/5MWh Integrated Energy Storage Power Plant: Design, Technology, and Operational Logic

In the rapidly evolving landscape of renewable energy integration and grid stability, advanced energy storage systems (ESS) have become indispensable. This article provides a comprehensive technical analysis of a state-of-the-art 2.5MW/5MWh grid-connected energy storage power plant project, as designed by ACE Power. We will explore its sophisticated system architecture, core equipment specifications, intelligent operating logic, and the robust safety features that ensure reliable performance.

1. Overall System Architecture & Design
The project is designed as a fully integrated, containerized solution with a power rating of 2.5MW and an energy capacity of 5MWh. The core system components are meticulously selected for seamless interoperability:

• Energy Storage Core: 12 sets of 417 kWh liquid-cooled battery clusters.

• Power Conversion: 1 set of a Sinexcel PWS1-2500K-H Inverter-Booster Integrated Cabin, combining the PCS and transformer.

• System Brain: 1 Energy Management System (EMS) for centralized control and monitoring.

• Grid Integration: 1 set of 2.5MW Grid-connected Switchgear.

• Battery Consolidation: 1 Combiner Cabinet.

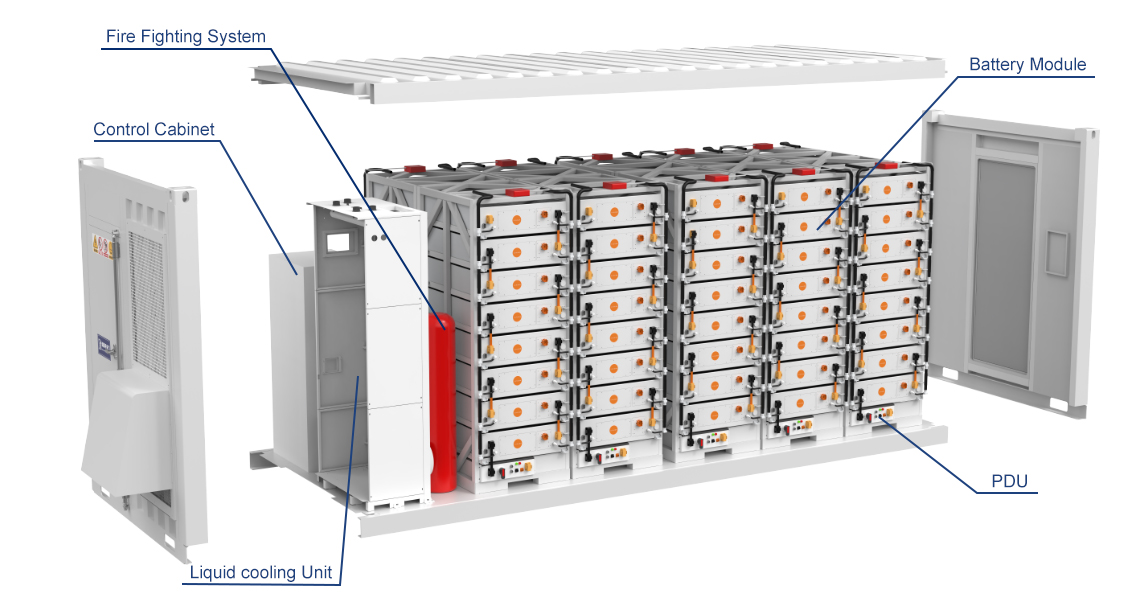

• Housing: All battery clusters are housed within a single Extra-Wide & Extra-High 20ft container.

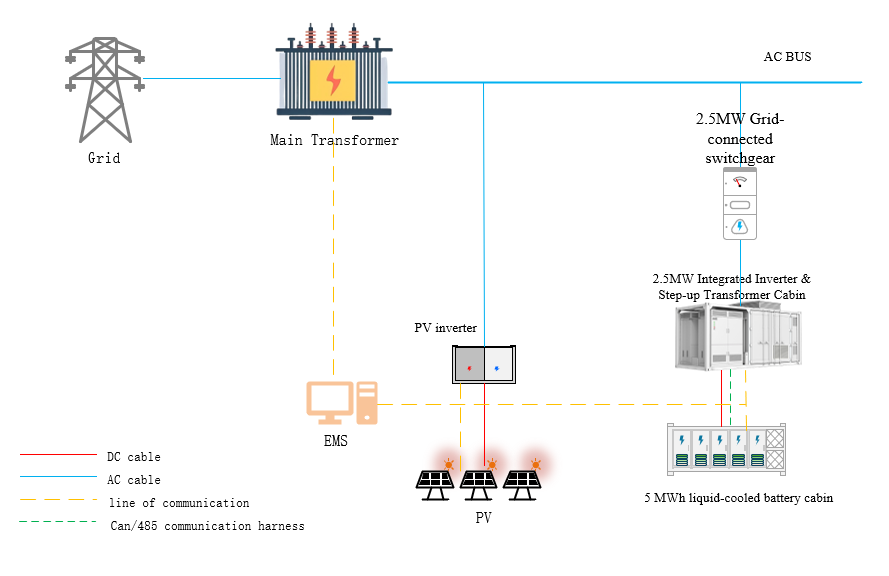

The single-line diagram illustrates a clean architecture: the battery cabin connects via DC cables to the PCS, which interfaces with the AC bus. The EMS oversees the entire ecosystem through communication lines.

2. Intelligent Operating Logic: A Dual-Mode System
The system operates on a smart, condition-based logic that maximizes efficiency and utility:

• PV-Grid Mode (Daylight): When photovoltaic (PV) generation is sufficient, the PV inverter feeds power directly to the AC bus for grid connection. Simultaneously, the ESS can draw power from this same AC bus for charging, optimizing energy capture.

• Storage-Discharge Mode (No-Light/Peak Demand): In the absence of solar generation or during grid peak periods, the battery cabin discharges stored energy through the PCS to supply the load or support the grid.

• Communication & Control Backbone: The EMS acts as the central nervous system. It connects to the PCS, Battery Management System (BMS), and PV equipment via RS485/Can protocols. It displays real-time operational data from all devices and provides immediate, location-specific fault alerts. Crucially, the BMS continuously transmits core battery parameters (voltage, temperature, state of charge) to the PCS, which uses this data to determine if conditions are safe for charging or discharging.

3. Deep Dive: Core Equipment Technical Specifications

3.1 The Battery System: Precision at the Cell Level

• Cell Foundation: The system utilizes 4,992 HiGEE LFP (Lithium Iron Phosphate) cells, model LFP71173207E-314Ah. Each cell has a nominal voltage of 3.2V and a rated capacity of 314Ah (at 0.5C).

• Battery Compartment Performance: The 12 clusters are configured into a high-voltage system.

• Rated Energy: 5,015.96 kWh (approximately 5MWh).

• Voltage Range: Operational voltage spans from 1,185.6V to 1,476.8V, with a rated voltage of 1,331.2V.

• Performance: Designed for continuous charge/discharge at 0.5C.

• Lifetime & Warranty: Guaranteed for 6,000 cycles or 5 years, underscoring its long-term economic viability.

• Safety: High insulation resistance (≥1000mΩ) and withstand voltage of 1500 VDC.

3.2 Power Conversion System (PCS): The Grid Interface

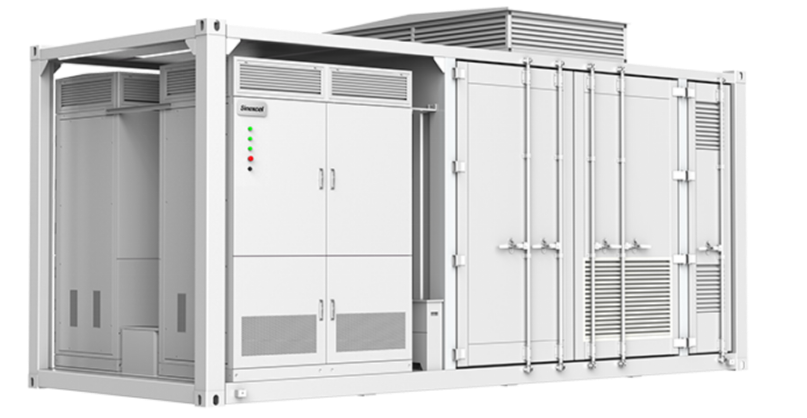

The Sinexcel PWS1-2500K-H cabin is the heart of power conversion.

• Power Rating: 2500kVA AC output, with an overload capacity of 2750kVA.

• Grid Compatibility: Accepts a wide voltage range (690V, -15% to +10%) and 50/60Hz frequency.

• Transformer: Integrates a step-up transformer (0.63kV to 6-37kV), available in dry-type or oil-immersed configurations.

• Robust Design: Built for harsh environments with an operating temperature range of -20°C to 60°C and an IP54 protection rating.

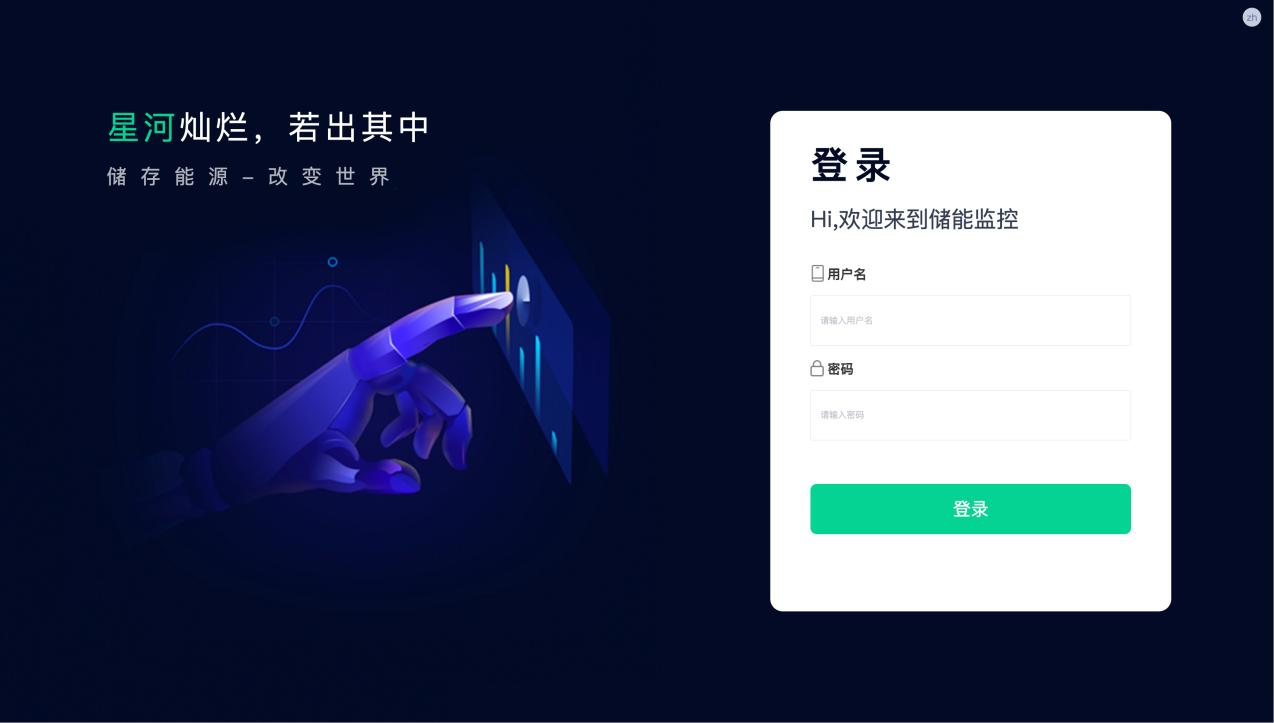

3.3 Energy Management System (EMS): The Command Center

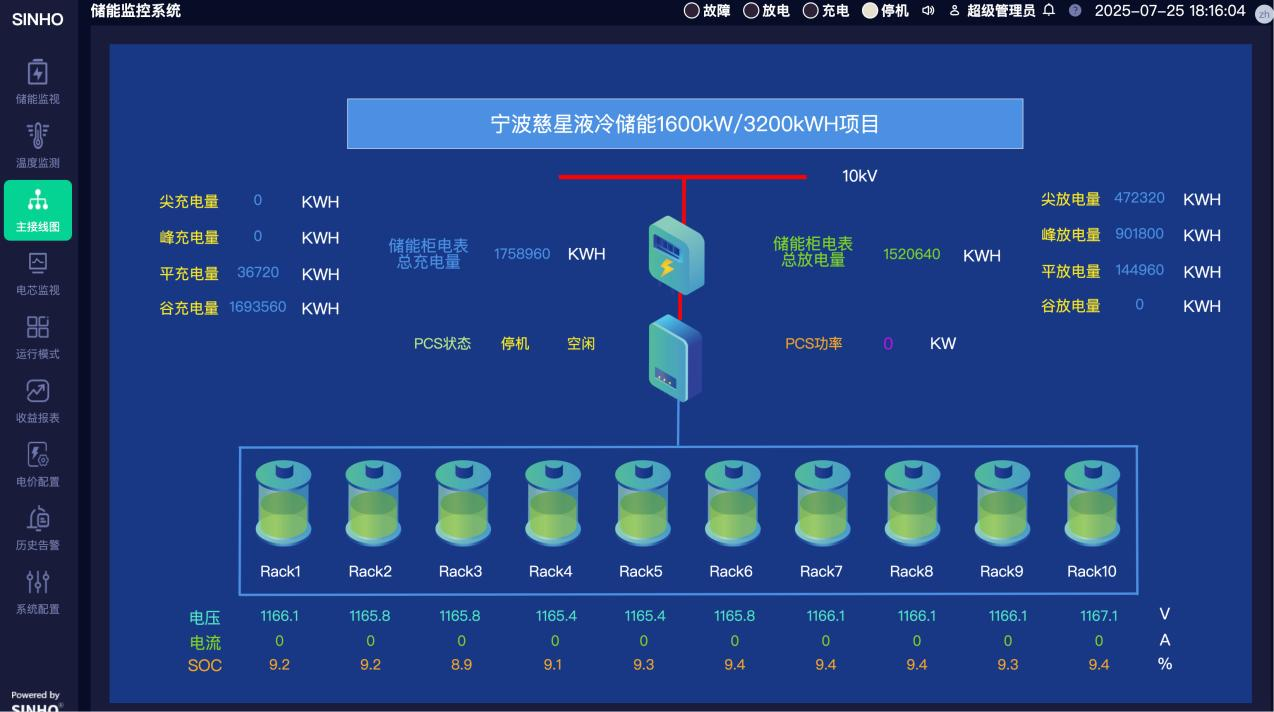

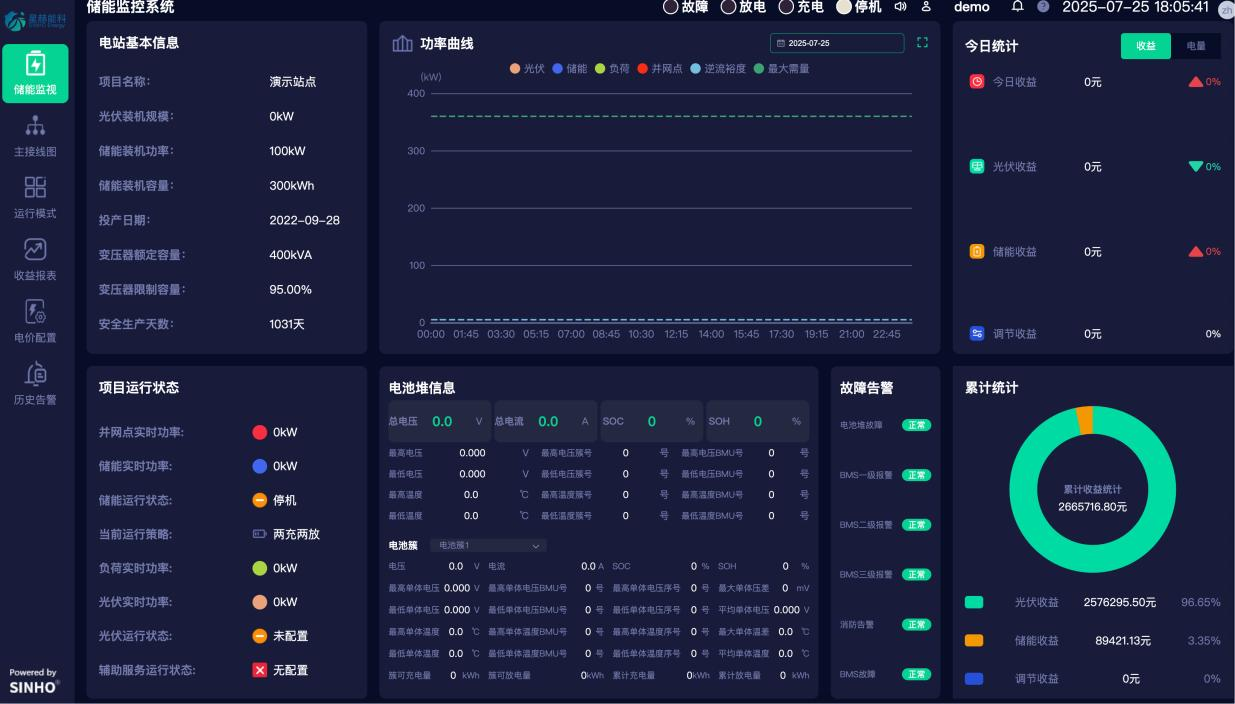

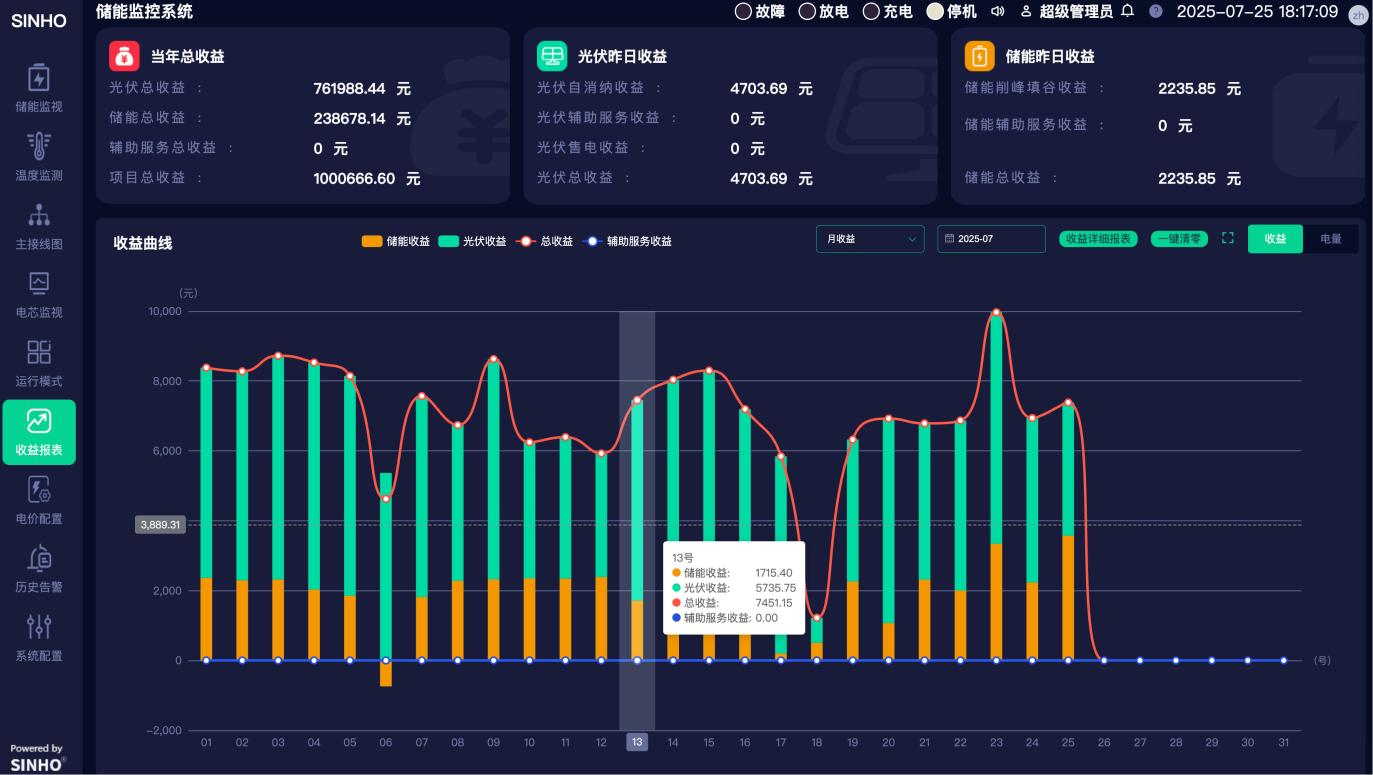

The EMS provides the user interface for complete system visualization and control. Its main dashboard and detailed information screens allow operators to monitor real-time power flows, battery status (SOC, SOH, voltage/temperature per cluster), PCS parameters, and historical data. It is the key tool for implementing energy arbitrage, peak shaving, and grid support strategies.

4. System Integration & Safety: Engineering for Reliability
The architecture finalizes as: 12 clusters (1P52S configuration) → 1 Combiner Cabinet → 1 PCS/Transformer Cabin → 1 Grid Switchgear, all managed by the EMS.

Safety is paramount, implemented in layers:

1. Fire Suppression: An FM-200 automatic system interlocked with temperature and smoke detectors for rapid fire suppression.

2. Thermal Management: A forced-air cooling system with smart air conditioners and explosion-proof fans maintains optimal battery operating temperature.

3. Electrical Safety: Fuses and circuit breakers in the high-voltage cabinet provide per-cluster protection against overcurrent and short circuits.

4. System-Level Protection: The BMS enforces strict protection thresholds (over/under voltage, temperature). Upon triggering, it immediately sends a command to the PCS to inhibit charge/discharge, preventing hazardous conditions.

5. Proven Track Record: Reference Projects
The design leverages experience from diverse global deployments, including:

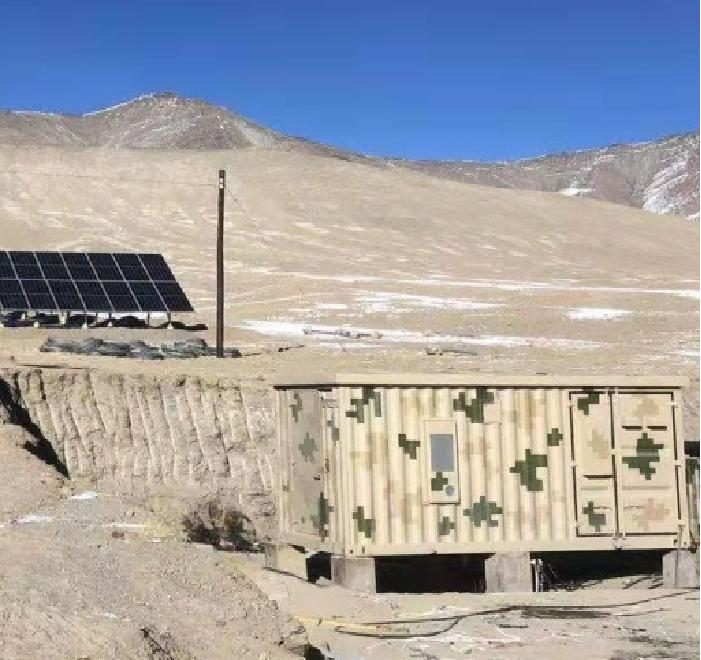

• A 3MWh Hybrid PV + Storage + Diesel system in Tibet & Xinjiang, demonstrating reliability in extreme climates.

• A 9MWh PV + Storage Off-Grid system in the Chad desert, showcasing off-grid capability.

• A 145 kWh Commercial & Industrial (C&I) system in Nigeria, proving scalability for different market segments.

Conclusion
This 2.5MW/5MWh energy storage power plant represents a mature, high-performance, and safe solution for modern energy challenges. By integrating high-quality LFP battery technology, a robust and efficient PCS, and an intelligent EMS within a meticulously engineered safety framework, it provides a reliable asset for grid services, renewable integration, and commercial energy management. Its containerized, modular design ensures ease of deployment and scalability, making it a versatile choice for a wide range of applications worldwide.

Project Design & Documentation: ACE Power | Date: February 2026
