Comprehensive Guide to C&I Energy Storage Batteries: Powering Business Efficiency

Commercial & Industrial (C&I) Energy Storage Batteries are transforming how businesses manage energy, offering cost savings, grid independence, and sustainability. These systems store electricity from solar, wind, or the grid, enabling enterprises to optimize consumption during peak tariffs, ensure backup power, and reduce carbon footprints. Leveraging advanced lithium-ion chemistry—primarily Lithium Iron Phosphate (LiFePO₄/LFP)—C&I batteries deliver unmatched safety, longevity, and scalability for diverse industrial applications.

I. Core Technologies & Specifications

1. Electrochemical Chemistry

• LiFePO₄ (LFP): Dominates C&I storage with exceptional thermal stability (>200°C), >6,000 cycles at 80% depth of discharge (DoD), and a 10–15-year lifespan. Ideal for high-safety environments like manufacturing plants.




• Ternary Lithium-Ion (NMC/NCA): Higher energy density (200–250 Wh/kg) suits space-constrained installations but requires robust thermal management.

2. Voltage & Capacity Ranges

• Standard Systems: 192V–600V configurations, with capacities scaling from 30 kWh to 10+ MWh.




• High-Voltage Models: 512V systems (e.g., 512V 400Ah) support industrial loads up to 76 kW, enabling seamless integration with three-phase inverters.




3. Form Factors & Scalability

• Stackable/Rack-Mounted: Modular designs (e.g., 5–30 kWh modules) allow capacity expansion from 10 kWh to 96 MWh. IP65-rated enclosures ensure dust/water resistance.

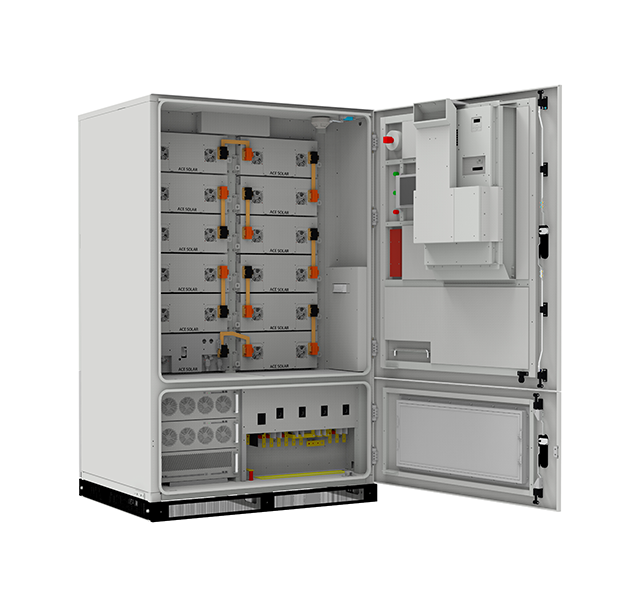

• All-in-One Cabinets: Integrate inverters, BMS, and fire suppression for plug-and-play deployment.




II. Performance Advantages

• Cost Reduction: Slash peak demand charges by 30%+ via energy shifting during high-tariff periods.




• Efficiency: >97% round-trip efficiency minimizes energy loss during storage.

• Longevity: LFP batteries endure >6,000 cycles—12× longer than lead-acid alternatives.




• Resilience: Operates at -20°C to 60°C, with <20 ms grid-switching during outages.

III. Key Applications

1. Peak Shaving: Discharge stored energy during peak hours to avoid utility surcharges.

2. Solar Self-Consumption: Store daytime solar for nighttime use, reducing grid reliance by 50–80%.




3. Backup Power: Ensure uninterrupted operations for critical infrastructure.

4. Microgrids & VPPs: Aggregate distributed batteries to support grid stability and generate revenue.

IV. Safety & Compliance

• Protections: Multi-layer BMS with over-voltage, short-circuit, and thermal runaway prevention.

• Certifications: UL9540, IEC 62619, UN38.3, and CE standards.




• Fire Safety: Integrated aerosol suppression and smoke/heat sensors for early hazard detection.

V. Future Innovations

• AI-Driven BMS: Predictive algorithms optimize charging based on weather/tariff data, extending lifespan.




• Solid-State Batteries: Enhanced safety and energy density.

• Cost Trends: LFP prices projected to drop 40% by 2030 due to scaled production.
