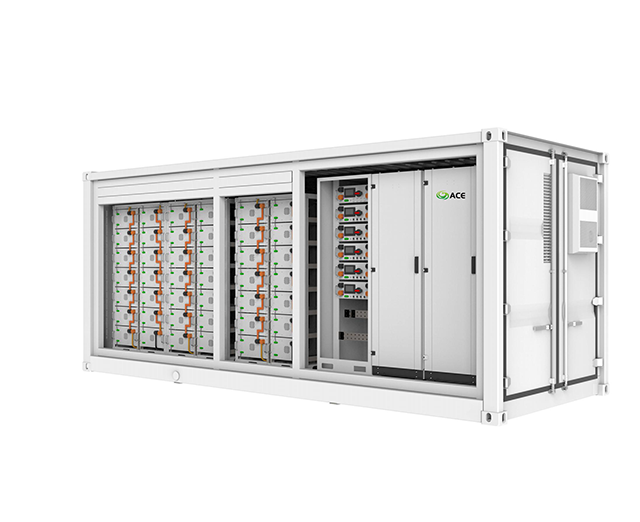

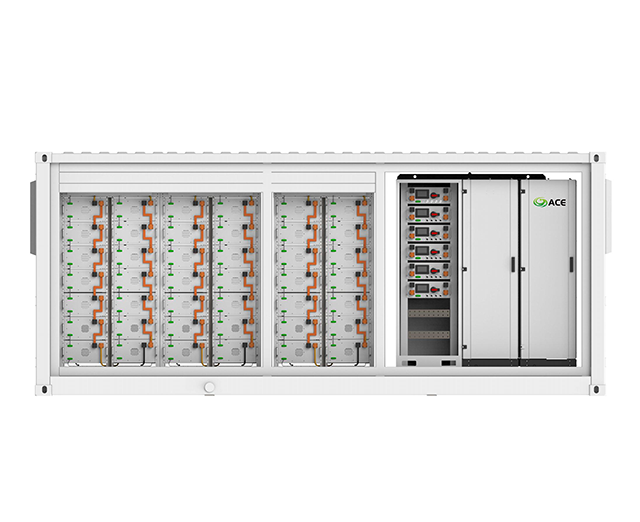

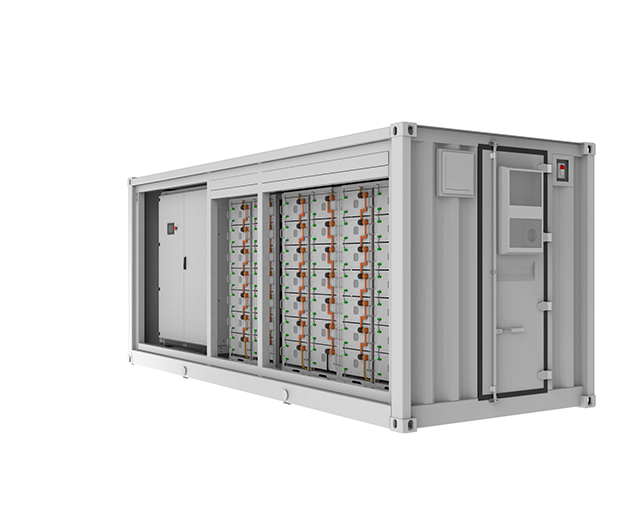

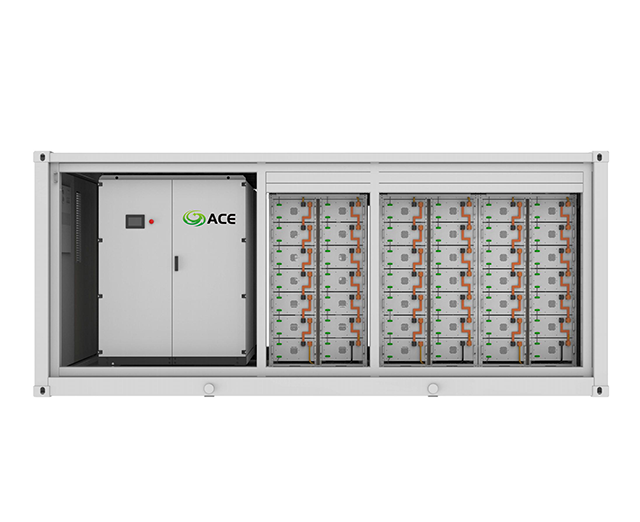

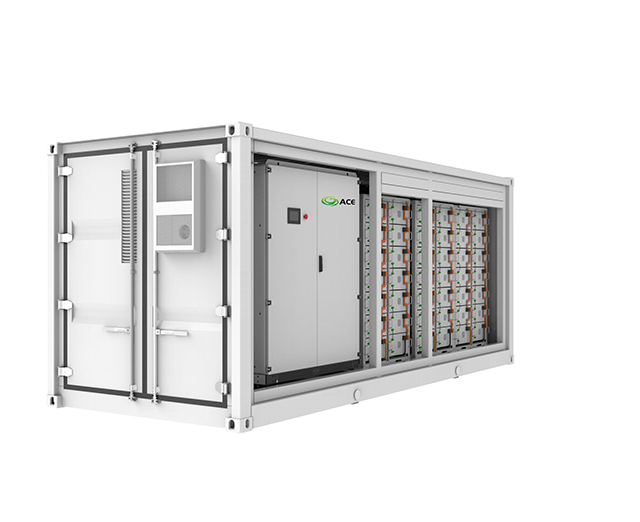

The MegaValley5 Series (NASA 5MWh/4MWh) delivers industrial-grade safety and efficiency in a compact 20ft container. Engineered with A+ Grade LiFePO4 cells and multi-layered safety protocols, it redefines large-scale energy storage for critical infrastructure.
| Specification | NASA-5MWh | NASA-4MWh |
|---|---|---|
| Nominal Energy | 5,015 kWh | 4,179 kWh |
| Nominal Voltage | 1,331.2 V | 1,331.2 V |
| Cell Chemistry | LiFePO4 (3.2V/314Ah) | |
| Cycle Life | ≥8,000 cycles@25℃, 0.5C | |
| Dimensions (W×D×H) | 6,058 × 2,438 × 2,896 mm | |
| Weight | ~43,000 kg | |
| Efficiency | 93% | |
| Cooling Method | Liquid Cooling (ΔT≤1.5℃/cluster) | |
| IP Rating | IP54 | |
| Compliance | IEC/EN 62619, UN3536, MSDS |
Q1: How many battery racks are included?
A: NASA-5MWh uses 12 racks; 4MWh uses 10 racks (416S1P configuration).
Q2: What safety certifications does it hold?
A: Complies with IEC/EN 62619 (safety), UN3536 (transport), and MSDS standards.
Q3: Can it operate in extreme temperatures?
A: Yes. Operating range: -25°C to +55°C; storage: -30°C to +60°C.
Q4: What applications does it support?
A: Peak shaving, microgrids, emergency backup, and price arbitrage.
