Product Introduction:

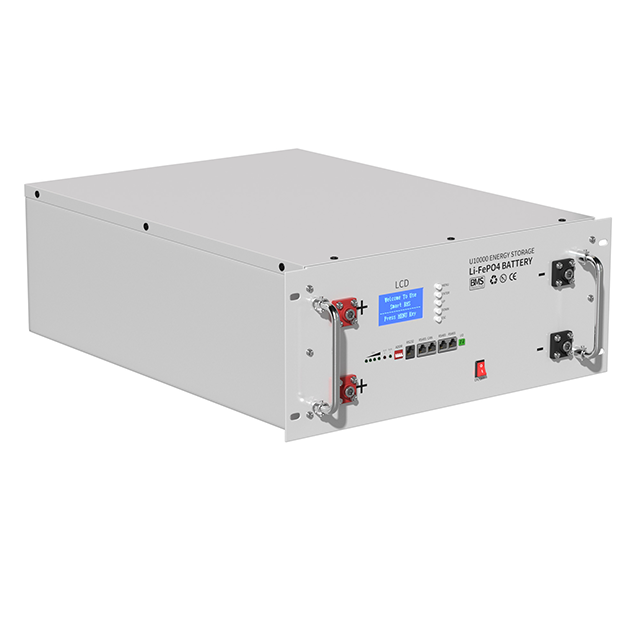

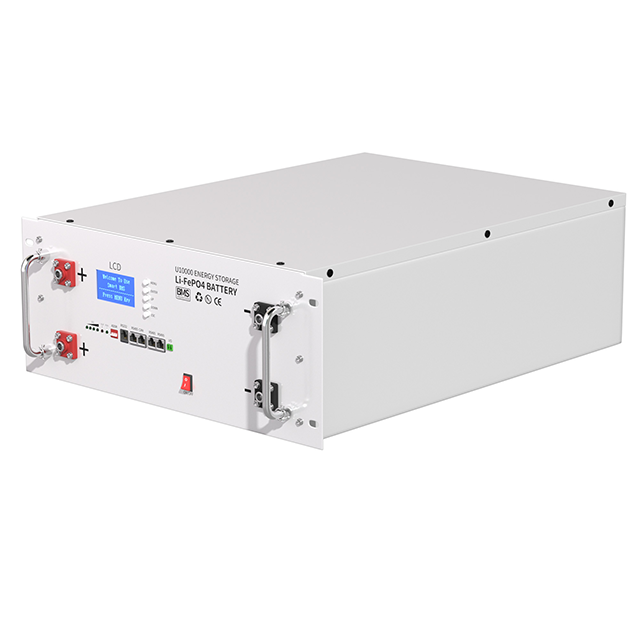

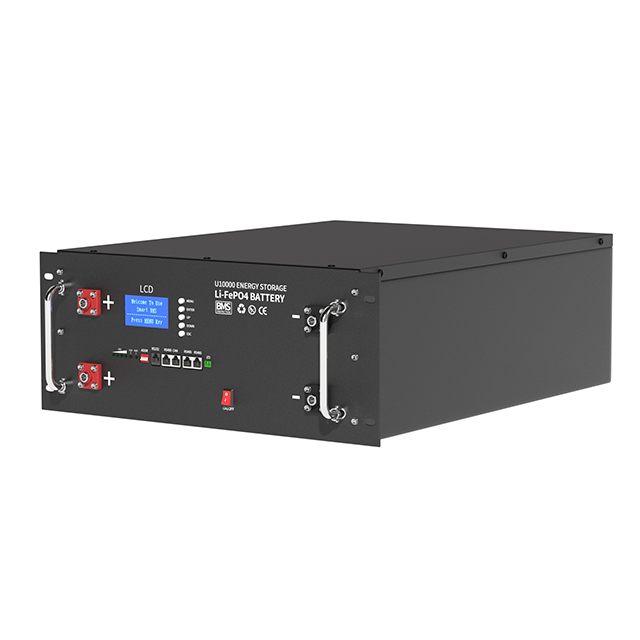

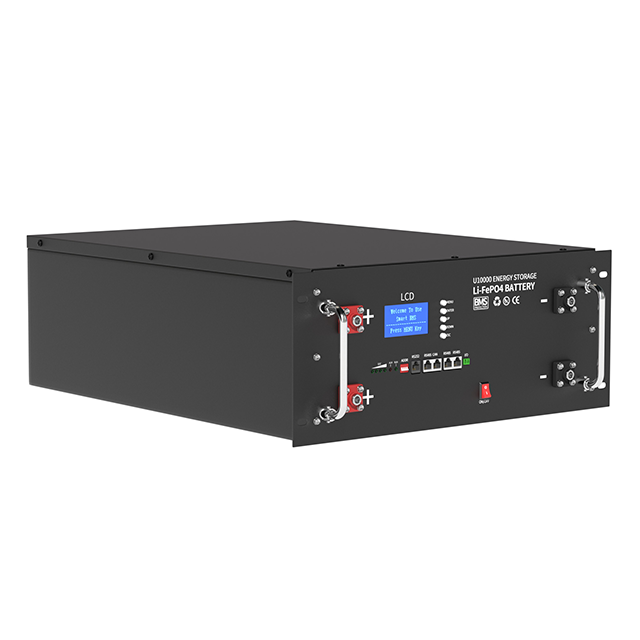

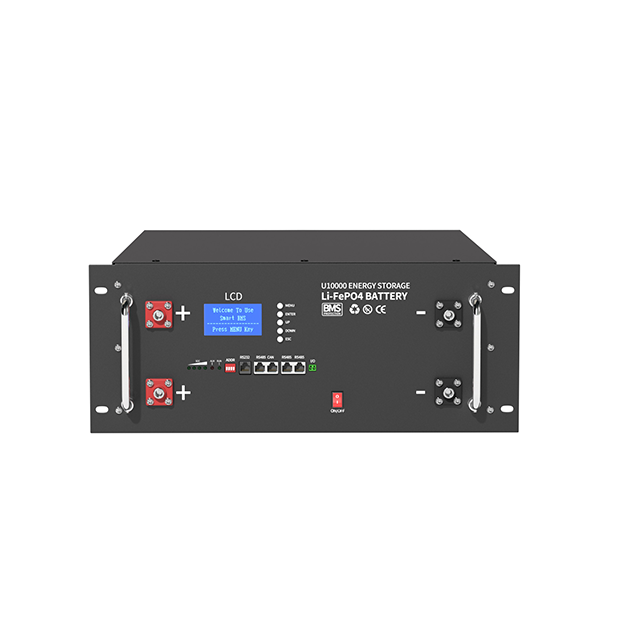

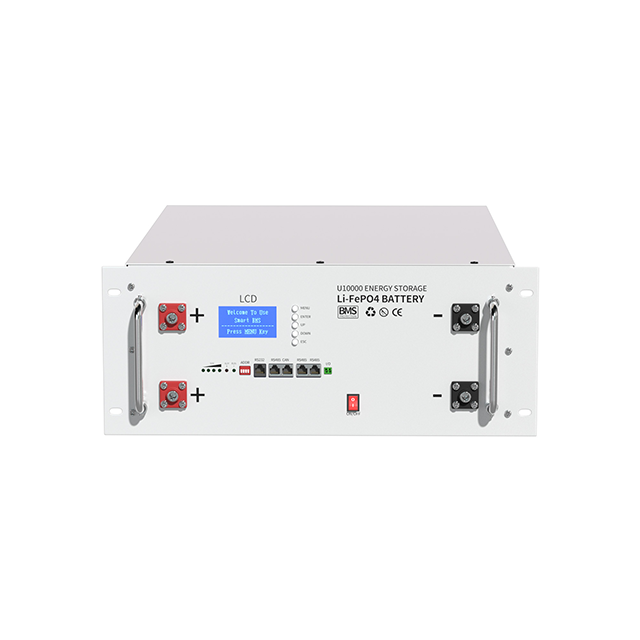

The RackPro Series is a modular rack-mounted lithium iron phosphate (LiFePO4) battery designed for residential, commercial, and industrial energy storage. Featuring A-grade LiFePO4 cells and a scalable rack design, it supports flexible capacity expansion with up to 15 units in parallel. The battery seamlessly integrates with leading inverters (e.g., Deye, Growatt, SMA, Victron) via RS232/CAN/RS485 communication (WiFi/BT optional). An optional touch LCD screen enables real-time monitoring and BMS configuration.
Key Parameters:
Models:
48V Series: 100Ah (4.8kWh), 200Ah (9.6kWh), 300Ah (14.4kWh)
51.2V Series: 100Ah (5.12kWh), 200Ah (10.24kWh), 300Ah (15.36kWh)
Voltage Range:
48V: 40.5–54V | 51.2V: 43.2–57.6V
Charge/Discharge:
Charge Current: 50A (100Ah), 100A (200Ah/300Ah)
Discharge Current: 100A (100Ah/200Ah), 200A (300Ah)
Durability:
Discharge: -20°C to 60°C
Charge: 0°C to 45°C
Cycle Life: >6,000 cycles @ 80% DoD
Operating Temp:
Design:
100Ah: 430×482×178mm
200Ah: 790×482×178mm (48V) / 790×482×240mm (51.2V)
300Ah: 790×482×240mm

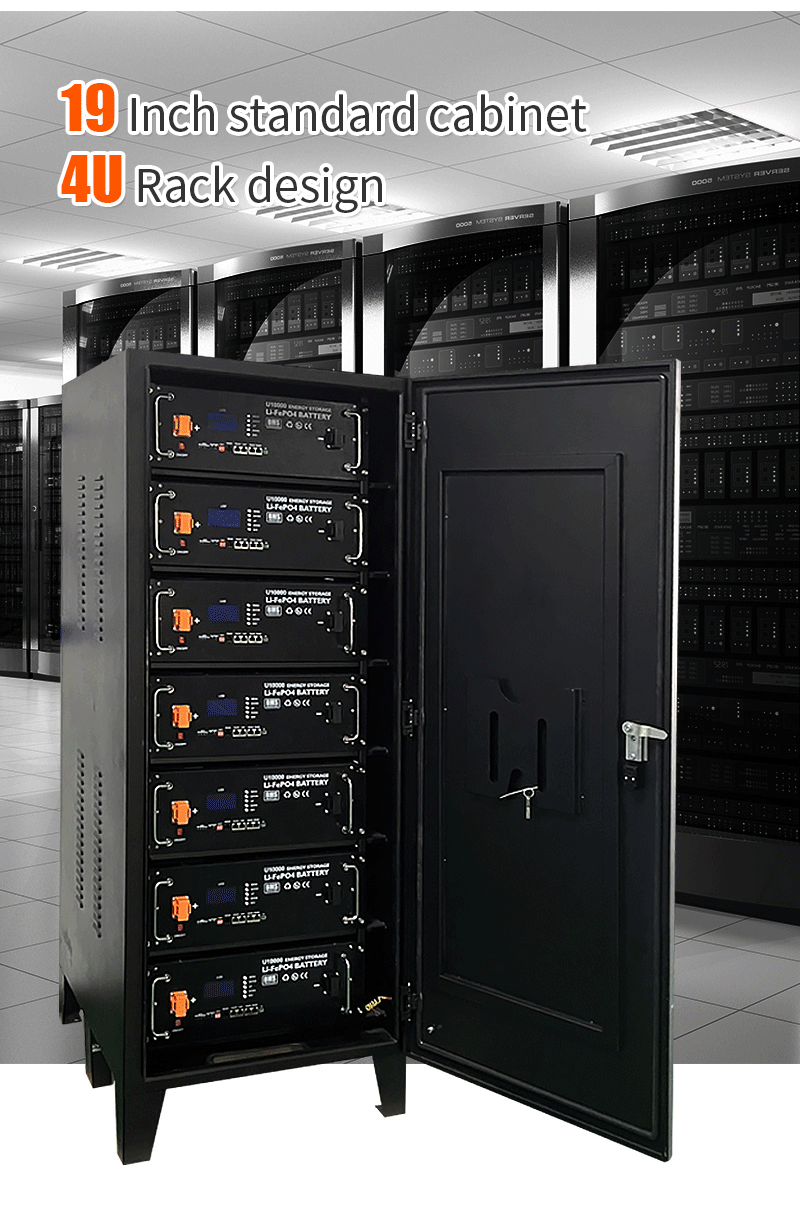

IP21 Rating | Stackable Rack Design
Dimensions (L×W×H):
Smart Features:
LCD/Touch Display (Optional)
BMS Protections: Over-charge/discharge, temperature, over-current, cell balancing
Certifications: UN38.3, CE, RoHS, FCC, MSDS
FAQ:
Q1: How many batteries can be connected in parallel?
A: Up to 15 units per system. Connect positive terminals (red) and negative terminals (black) in parallel.
Q2: Is the battery compatible with off-grid solar systems?
A: Yes. It integrates with solar inverters (e.g., Deye, Growatt) and supports PV applications with >96% self-consumption.
Q3: What communication interfaces are supported?
A: RS232, CAN, RS485 (WiFi/BT optional) for inverter compatibility and remote monitoring.
Q4: What is the warranty period?
A: 5-year warranty on all models.
Q5: Can the battery operate in extreme temperatures?
A: Discharge is supported from -20°C to 60°C, but charging requires 0°C–45°C.
Applications: Home Energy Storage, Solar/Wind Systems, Marine, Telecom, RV, and Backup Power.
