Revolutionizing EV Charging with Modular Innovation

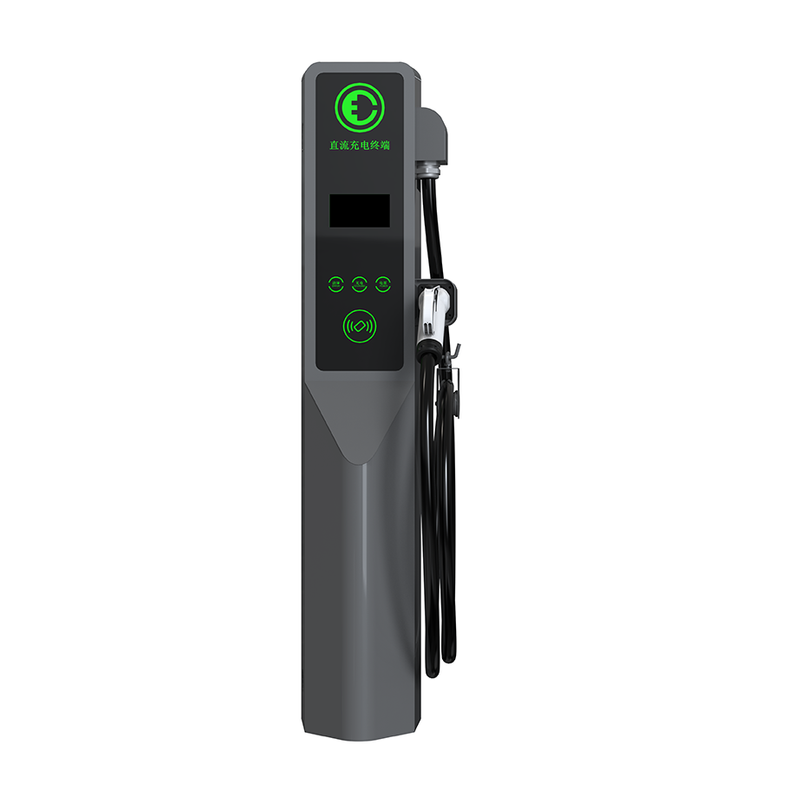

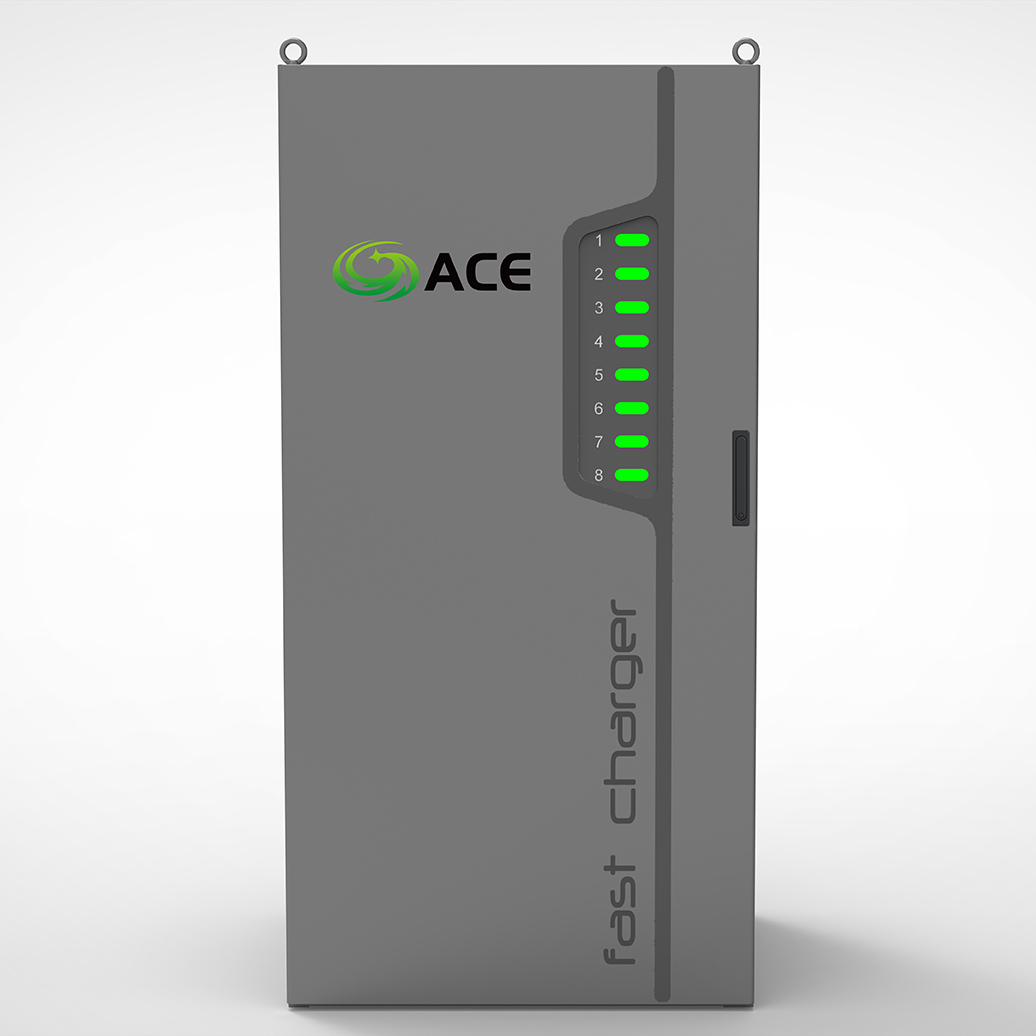

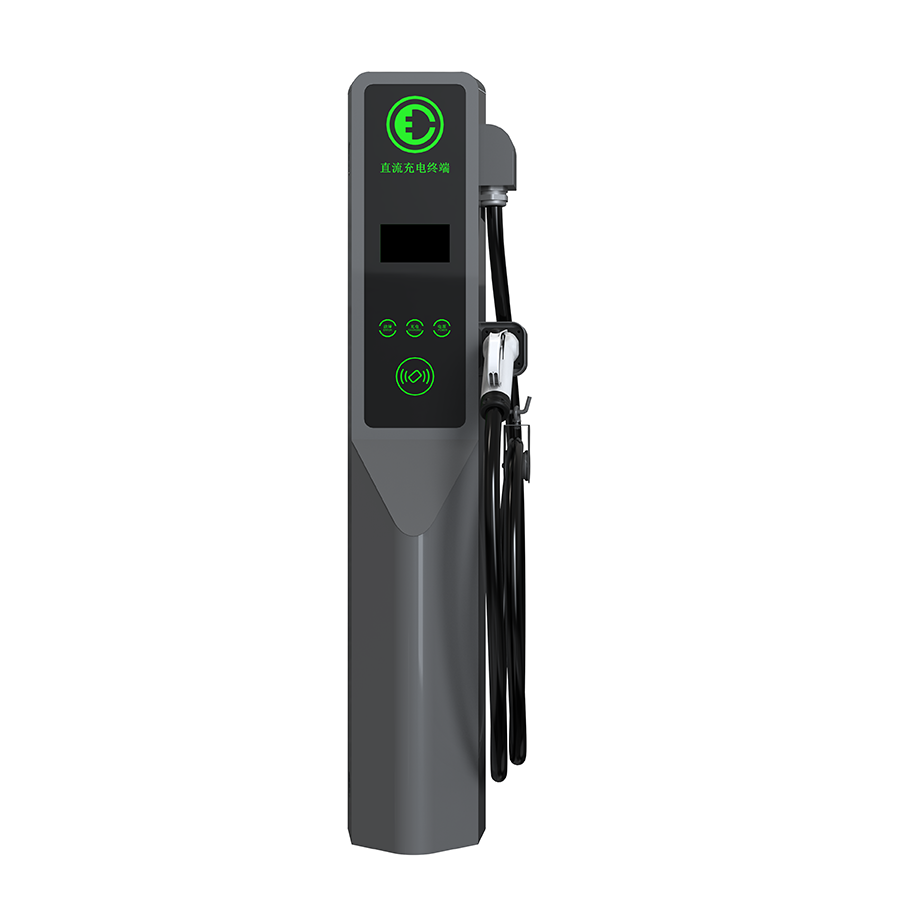

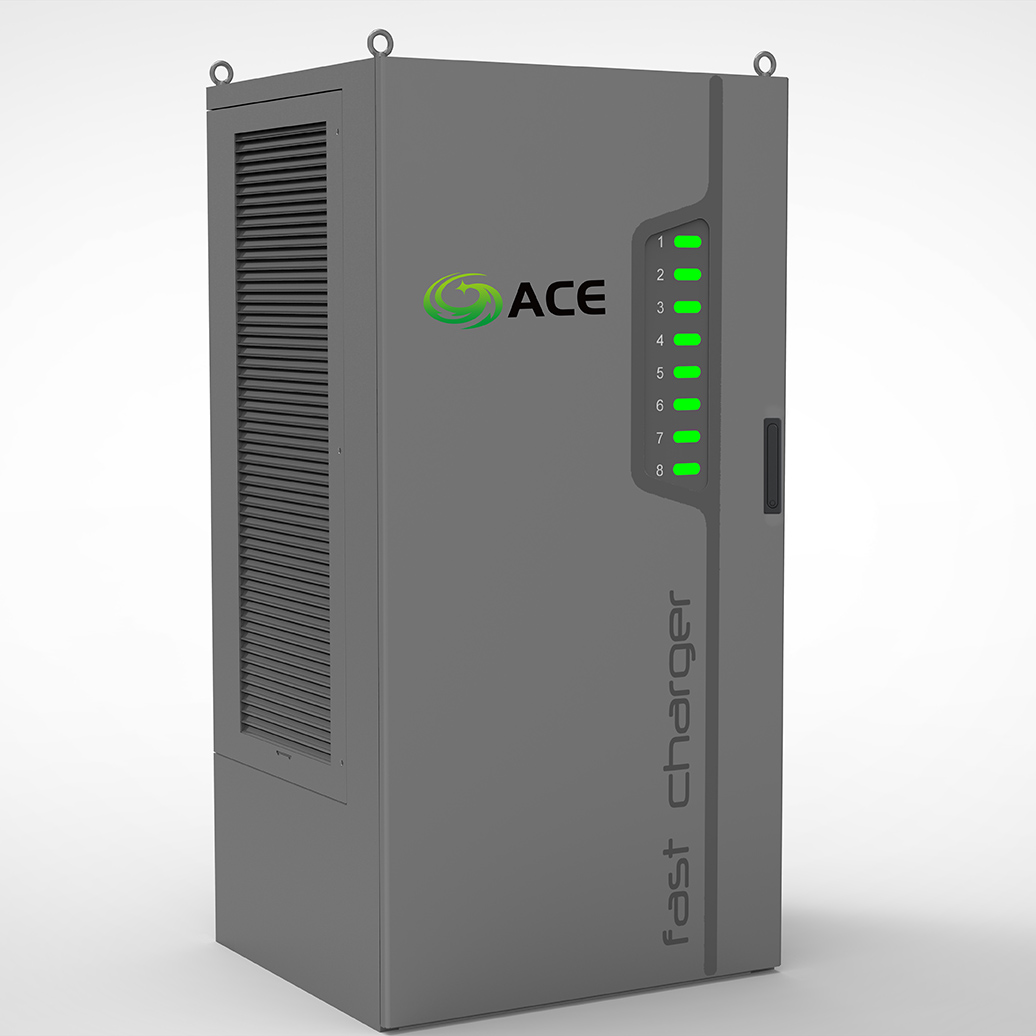

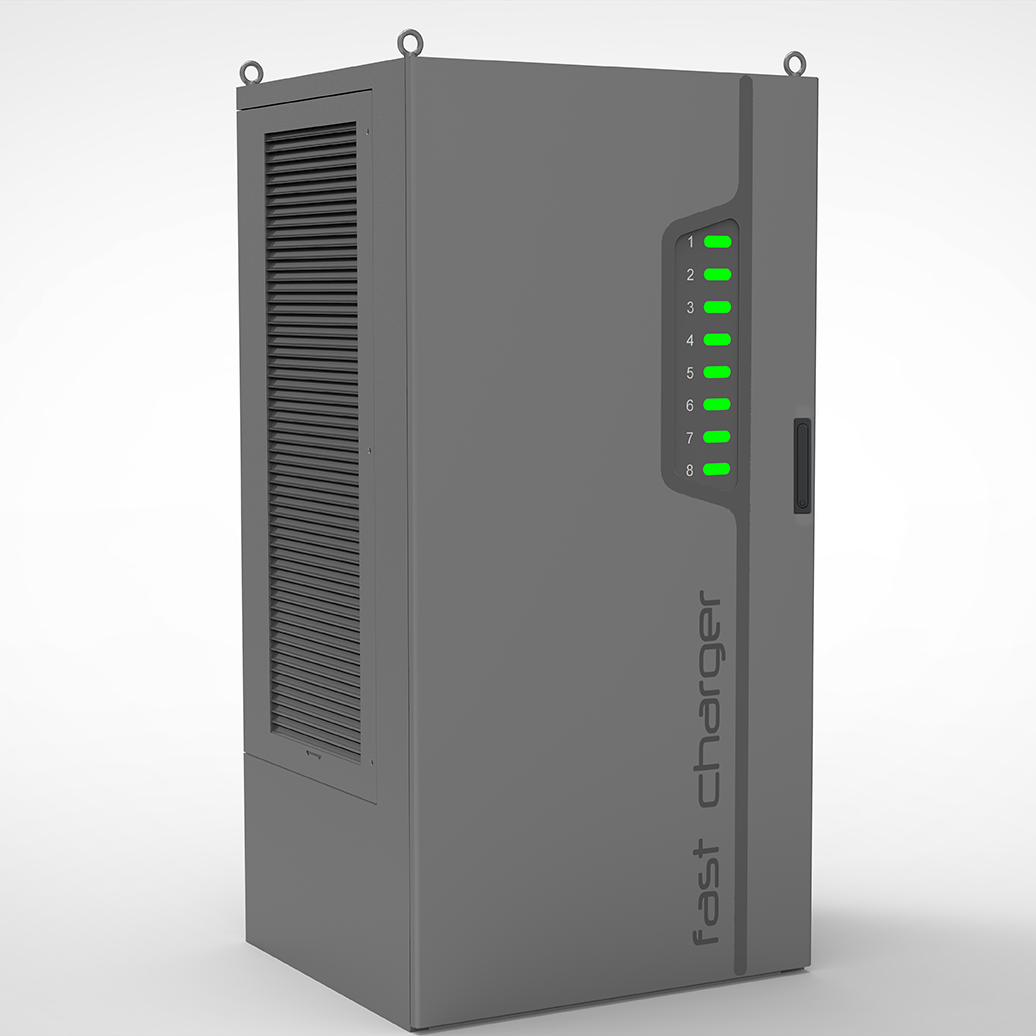

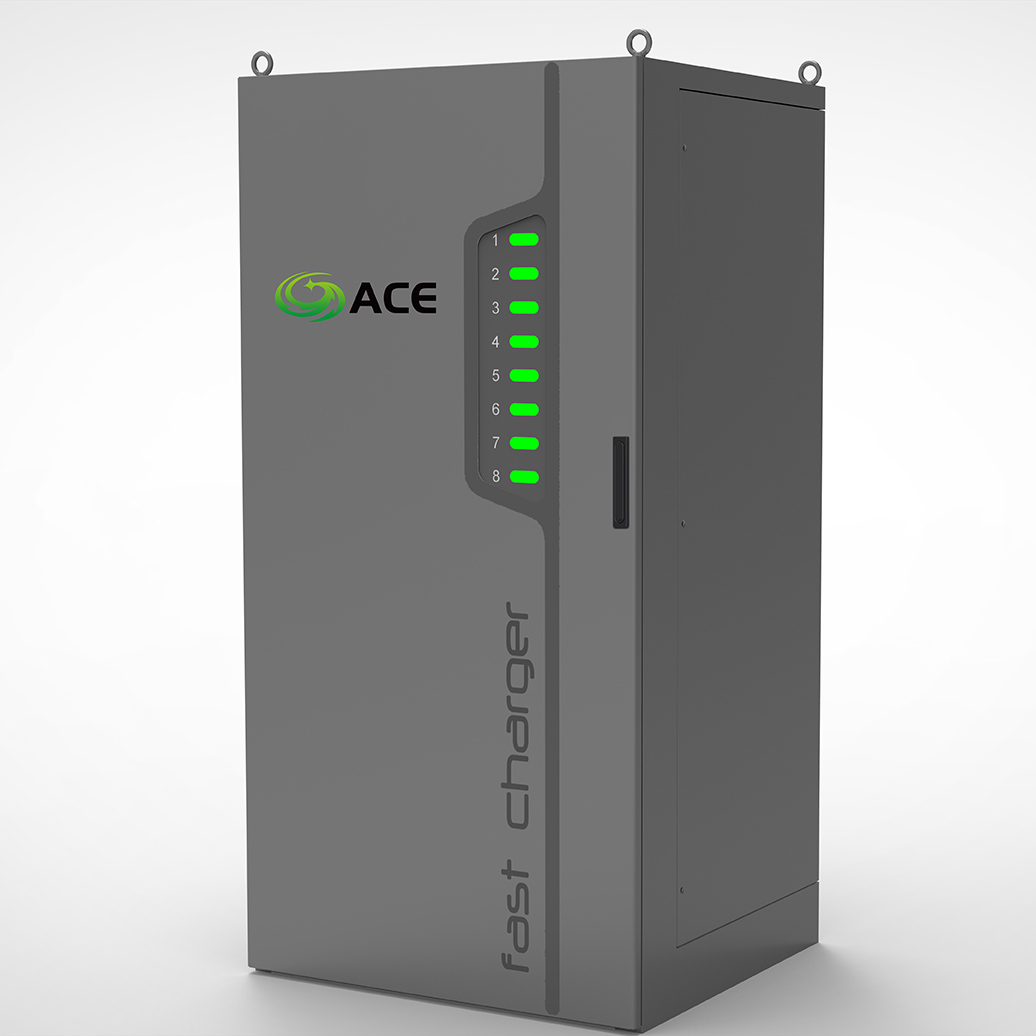

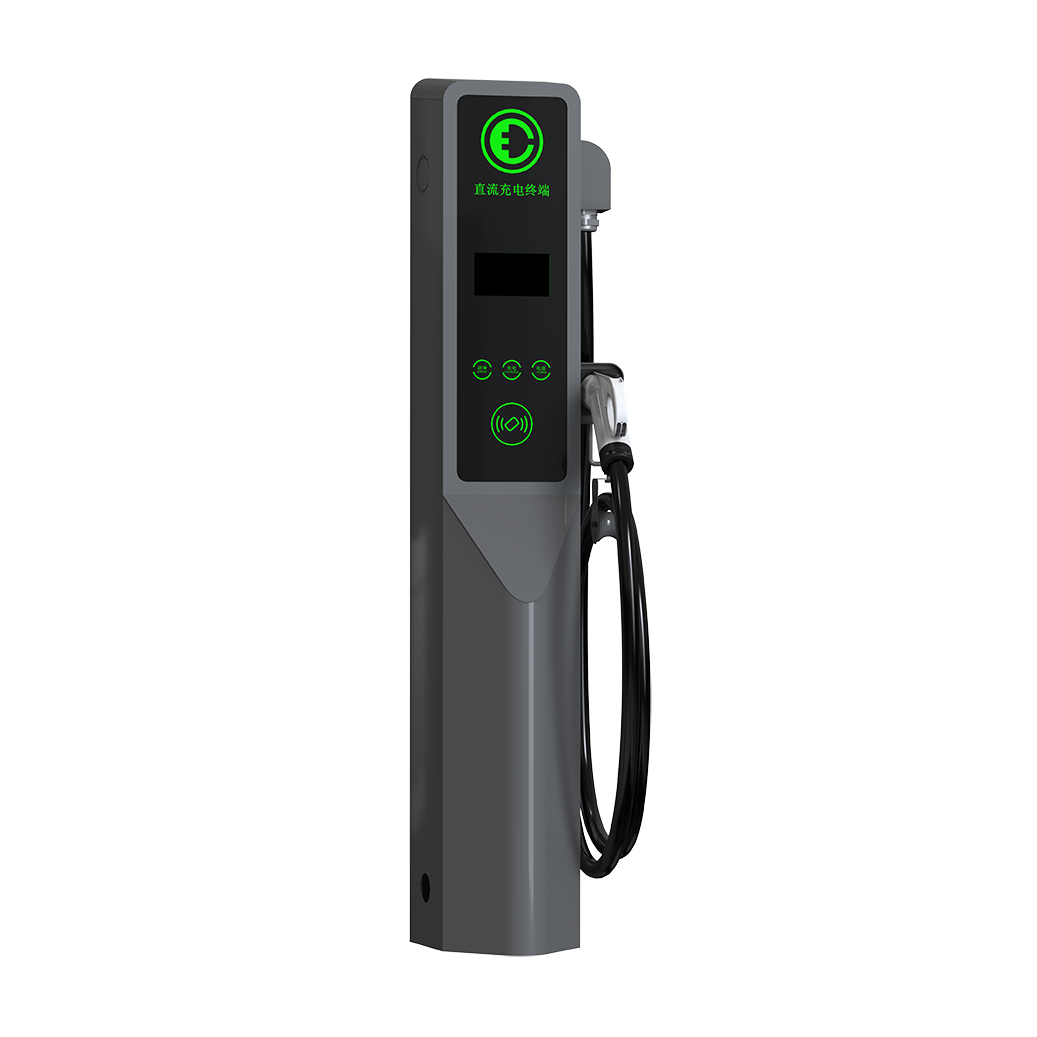

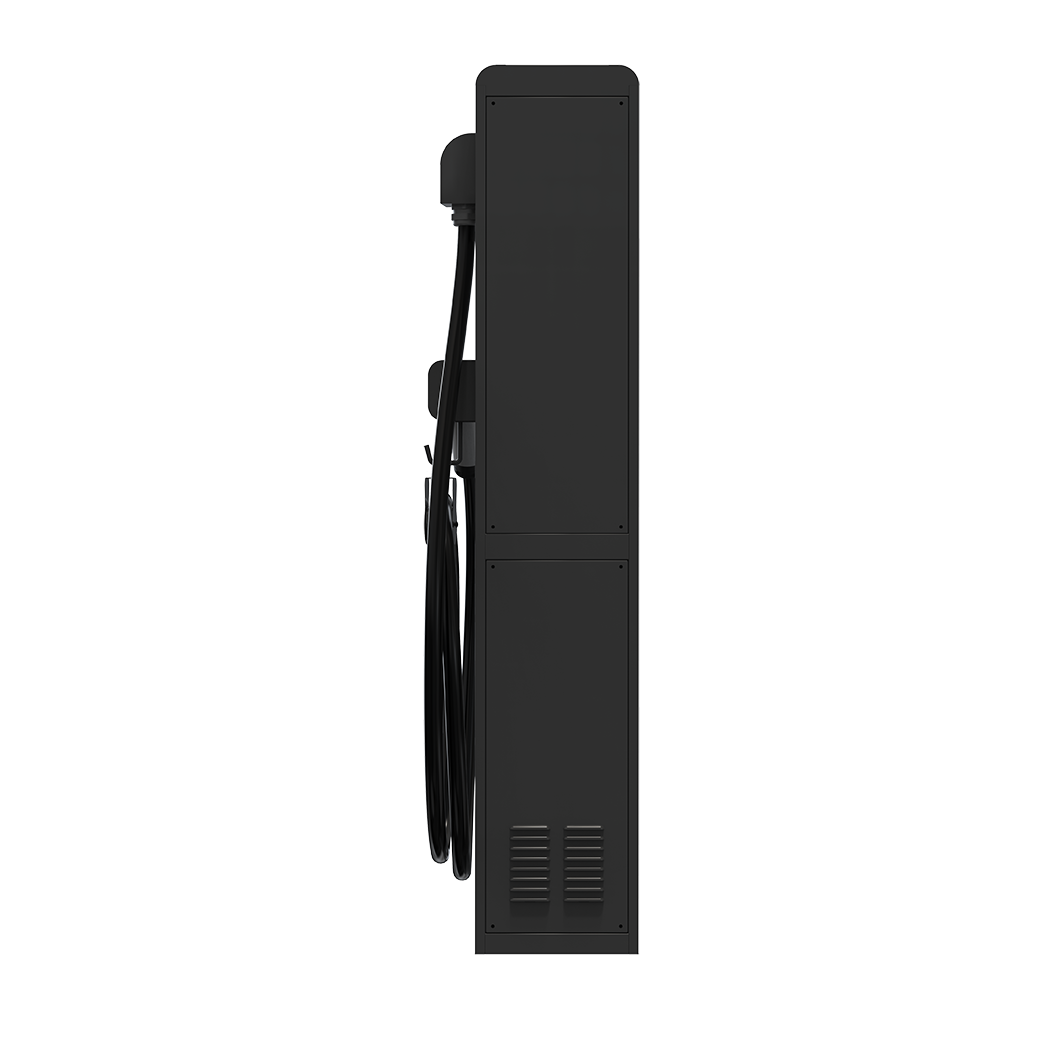

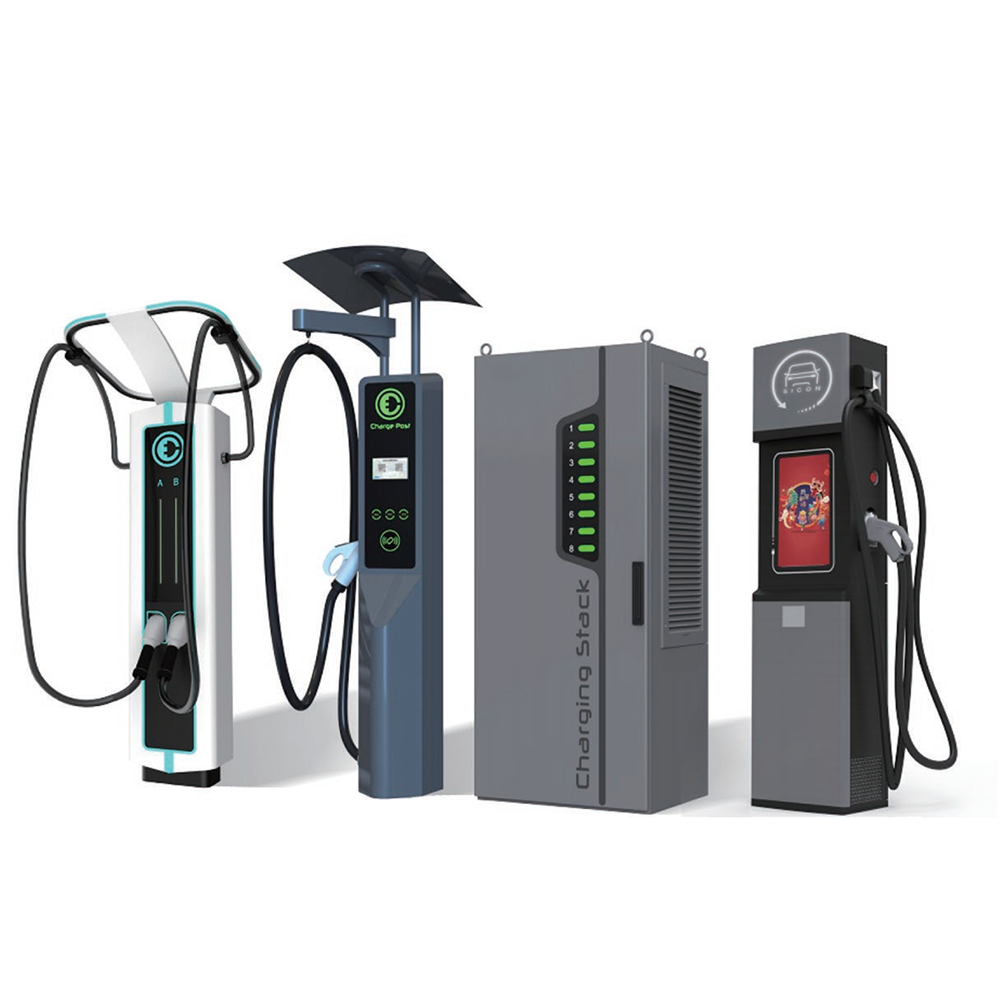

The EVMS Satellite Charger is a cutting-edge split-type electric vehicle (EV) charging solution engineered to meet the escalating demands of modern EV infrastructure. Designed by ACE Solar, this system integrates a power stack, control units, and charge posts into a cohesive, modular architecture. Ideal for high-traffic commercial environments like parking lots, highway rest stops, and fleet depots, the EVMS Satellite Charger supports global standards including CCS, CHAdeMO, GB/T, and NACS, making it a versatile choice for international markets.
1. Modular Scalability
Dynamic Power Allocation: The system employs intelligent power distribution, dynamically adjusting output (0–480 kW per port) based on real-time EV demand. This eliminates wasted capacity and optimizes energy use.
Flexible Configurations: Available in three base models—EVDS-240 (240 kW), EVDS-320 (360 kW), and EVDS-480 (480 kW)—supporting up to 12 charging outlets. Each outlet can deliver 120–480 kW, accommodating everything from compact EVs to heavy-duty trucks.
Expandability: Additional power stacks can be integrated seamlessly, allowing operators to scale capacity as demand grows without replacing core infrastructure.
2. Advanced Power Electronics
High Efficiency: Achieves 97% power module efficiency and 96.5% system efficiency through optimized thermal management and reduced energy loss.
Wide Voltage Compatibility: Input voltage ranges from 260V to 530V AC (auto-derating below 304V), while DC output spans 50–1,000V, covering all current EV battery architectures.
Liquid-Cooled Options: For ultra-high-current applications (up to 500A), liquid cooling ensures stability and longevity, critical for 24/7 commercial operations.
3. Smart Control & Safety
Insulation Monitoring: Automatically shuts off output if electrical faults are detected, preventing hazards like short circuits or leakage currents.
Dust-Free Control Units: Isolated heat dissipation ducts separate power components from control circuits, ensuring reliability in dusty or humid environments.
RFID & Payment Integration: Supports ISO/IEC 14443A/Mifare RFID and OCPP 1.6/2.0 protocols for secure authentication and payments via mobile apps, web portals, or contactless cards.
1. Interactive 21-Inch Display
Beyond charging controls, the display doubles as an advertising platform, playing videos or promotions during sessions. This transforms idle charging time into revenue-generating opportunities for operators.
2. All-Climate Resilience
Operating Range: Functions flawlessly from -35°C to 60°C (with heating below -20°C), backed by IP55 and IK10 protection against dust, water, and physical impacts.
High-Altitude Performance: Certified for use up to 2,000 meters, suitable for mountainous regions.
3. Network & Compatibility
4G/LAN/Wi-Fi Connectivity: Auto-switches between connections to maintain uptime.
BMS Integration: Provides 12V/10A auxiliary power for vehicle battery management systems, ensuring seamless communication during charging.
| Parameter | EVDS-240 | EVDS-320 | EVDS-480 |
|---|---|---|---|
| System Capacity | 240 kW | 360 kW | 480 kW |
| Max Outlets | 6 | 8 | 12 |
| Output per Port | 0–120 kW | 0–160/320 kW | 0–240/480 kW |
| Input Voltage | 400 VAC ±20% | 400 VAC ±20% | 400 VAC ±20% |
| Power Factor | >0.997 | >0.997 | >0.997 |
| Efficiency | 96.5% (system) | 96.5% (system) | 96.5% (system) |
| Noise Level | <65 dB | <65 dB | <65 dB |
| Certifications | CE, IEC EN61851, EN62196, DIN70121, ISO15118 |
Commercial Fleets: Simultaneously charge multiple vehicles with dynamic power sharing.
Public Charging Hubs: High throughput minimizes wait times during peak hours.
Renewable Integration: Compatible with solar hybrid systems (e.g., ACE Solar’s HY Series), enabling sustainable off-grid operation.
Future-Proof: Upgradable to OCPP 2.0 and future standards.
Low TCO: Reduced maintenance costs and energy waste translate to higher ROI.
Eco-Conscious: Ultra-low electromagnetic radiation and 97% efficiency align with net-zero goals.
The EVMS Satellite Charger redefines scalability and intelligence in EV fast charging. By merging modular power stacks with military-grade durability and smart features like dynamic load balancing, ACE Solar delivers a solution poised to dominate the next decade of e-mobility infrastructure. For operators seeking to balance performance, sustainability, and profitability, this system is the unequivocal choice.
Application: Parking lots and charging station where multiple DC charging service required.
Features:
· Comply with CCS, CHAdeMO, NACS, GB/T; Output current 200A, 250A, 300A, 400A or 500A(liquid-cooled).
· Flexible power distrbution function, dynamically adjust output power according to the demand of electric vehicles.
· 21-inch display supports charging operation and advertising video playback at the same time.
· Supports Web &mobile based payment methods.
· Insulation monitoring function, automatically turn off output to ensure safe charging.
· High adaptability of temperature range, isolated heat dissipation air ducts, power heat dispassion is separat-ed
from control circuit to ensure dust-free control unit.
· High efficiency,high reliability, ultra low radiation, fast maintenance, flexible capacity expansion, energy efficiency
and environmental protection.
