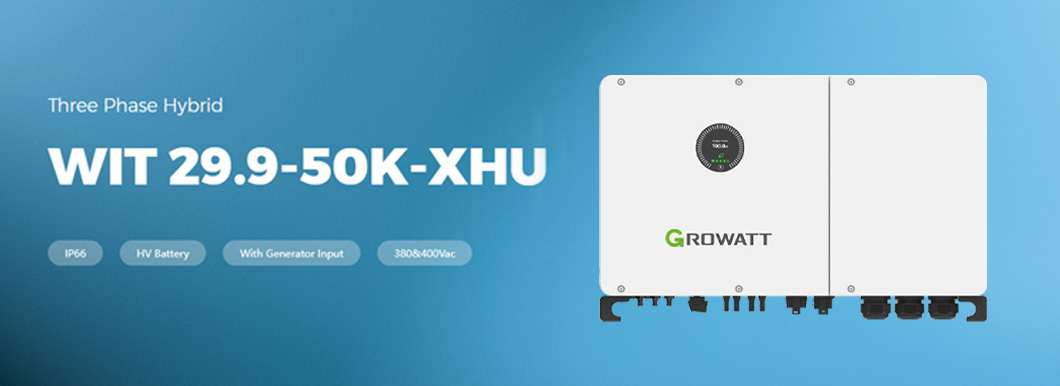

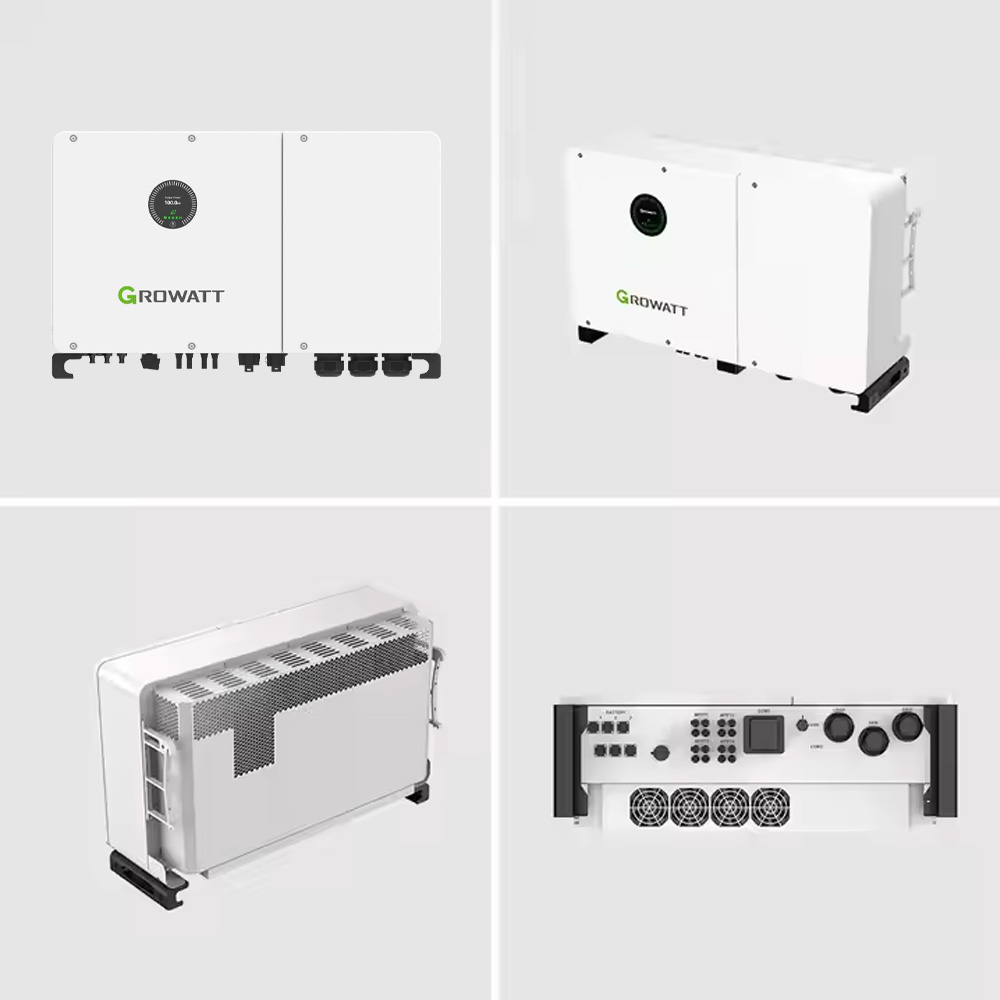

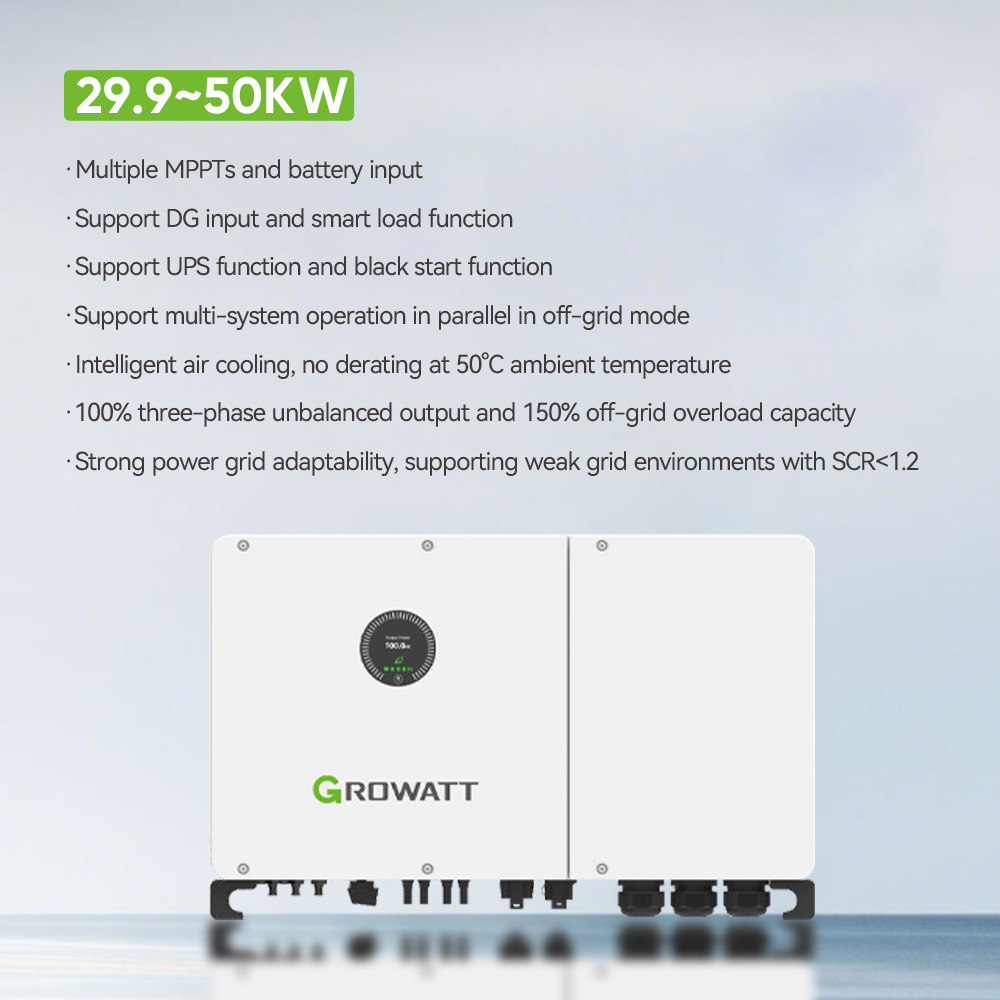

The 29.9~50K by ACE Solar represents a paradigm shift in hybrid inverter technology, engineered to bridge high-efficiency energy conversion with industrial-scale reliability. Designed for commercial and utility-scale installations, this inverter integrates Silicon Carbide (SiC) semiconductor modules—a breakthrough in power electronics—to achieve unprecedented efficiency and thermal stability. Its modular architecture supports grid-tied, off-grid, and hybrid operations, making it a cornerstone for modern renewable energy systems seeking grid independence and sustainability.
At the heart of the WIT_29.9~50K-XHU lies a 30 mΩ/1200V SiC MOSFET 6-PACK module, optimized for solar inverters and energy storage systems. Unlike traditional silicon-based transistors, SiC technology reduces switching losses by 70% and operates at temperatures up to 200°C, enabling:
98.6% Peak Efficiency: Minimizes energy waste during DC-AC conversion.
Compact Heat Dissipation: Eliminates bulky cooling systems, reducing footprint by 40%.
High-Frequency Operation: Supports 50kHz switching for smoother output and reduced harmonic distortion.
The inverter seamlessly pairs with ACE Solar’s HyperYield N-Type solar panels (695–720W Tier-1 modules), leveraging monocrystalline cells with >22.5% efficiency. Key synergies include:
MPPT Dynamic Tracking: Dual 550V MPPT controllers adapt to shading or panel degradation, maintaining >99% tracking efficiency.
Partial Shade Resilience: Even under 50% shade, power loss is capped at 15% via distributed bypass diodes.
Hybrid Operation Modes:
Grid-Tied with Zero Export: Feed surplus energy to storage without grid injection.
Off-Grid Microgrid: Power critical loads during outages via integrated STACK200A batteries.
AI-Powered Forecasting: Analyzes weather and consumption patterns to optimize battery charge/discharge cycles, extending lifespan by 20%.
The inverter natively supports ACE Solar’s NASA Series Liquid-Cooled Storage (20–50T capacity) and STACK200A modular batteries, featuring:
1C Charge/Discharge Rate: Fully recharge in 1 hour, ideal for peak-shaving.
Plug-and-Play Scalability: Expand capacity from 10kWh to 1MWh without reconfiguration.
Integrated with C&I EVDS Charging Stations, the inverter enables:
Solar-Powered EV Charging: Direct DC coupling cuts conversion losses by 30%.
Dynamic Load Balancing: Allocates surplus solar to EVs while prioritizing building loads.
Protocol Support: Modbus TCP, CAN 2.0B, and SunSpec IEEE 1547 compliance.
Cloud Monitoring: Real-time analytics via ACE Solar’s platform, including fault diagnostics and CO₂ savings reports.
| Parameter | Specification | Advantage |
|---|---|---|
| Efficiency (Peak) | 98.6% | Highest in class, reduces LCOE |
| Input Voltage Range | 550–850V | Compatible with high-power PV strings |
| Output Power | 29.9–50kW | Scalable for factories, data centers |
| THD (Grid Mode) | <1.5% | Ensures grid compliance and stable loads |

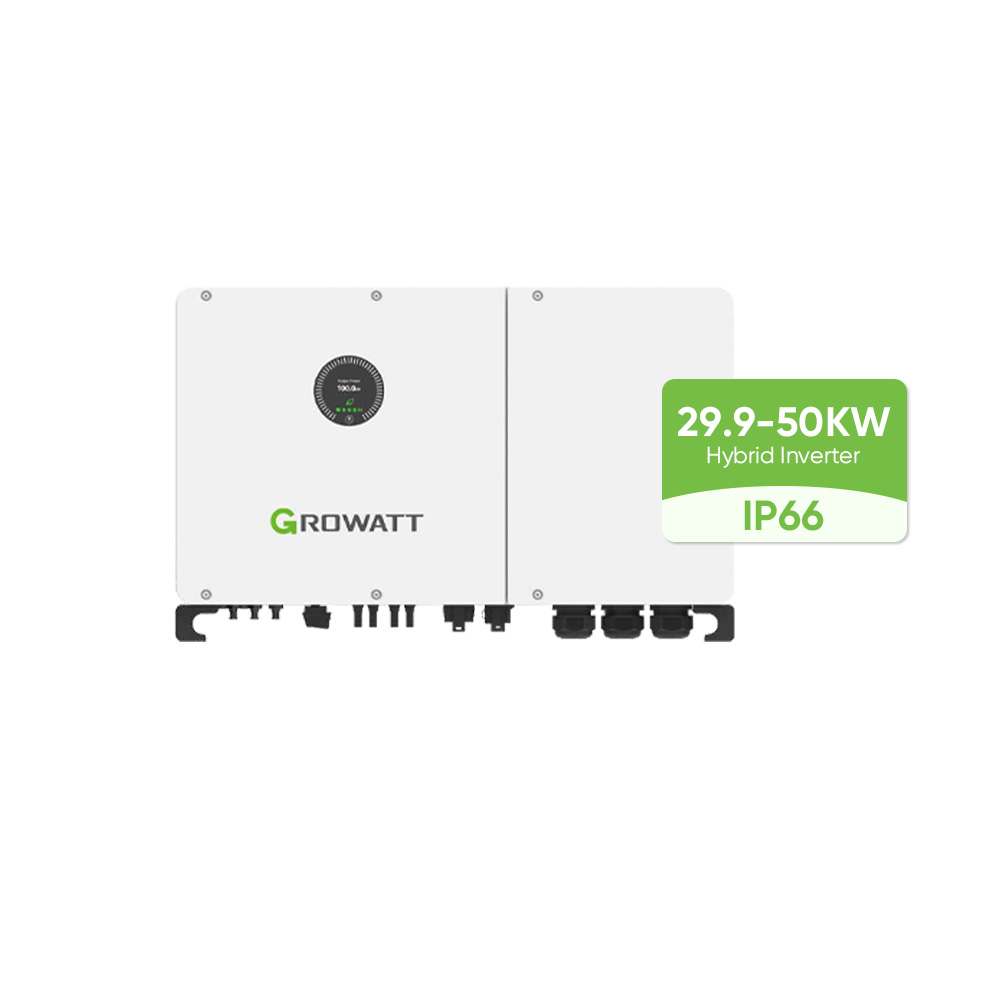

IP66 Rating: Dust/water-resistant for outdoor deployment.
Grid Fault Ride-Through: Maintains operation during voltage sags (down to 50% nominal).
Arc-Fault Detection: Meets UL 1699B safety standards.
A textile factory in Guangdong, China, deployed 12 units of WIT_50K-XHU with 2.4MW solar panels and 500kWh storage, achieving:
40% Energy Cost Reduction: Via peak shaving and time-of-use optimization.
3-Year ROI: Accelerated by government green subsidies.
In Southwest China’s agrivoltaic farms, the inverter powers irrigation and processing units while adapting to PV shade variations—boosting kiwifruit yield by 18% through optimized water-energy synergy.
Carbon Footprint Reduction: Each 50kW system offsets 75 tons of CO₂ annually.
Lifecycle Durability: 10-year warranty, extendable to 25 years, with <0.5% annual degradation.
Smart Grid Services: Participate in demand response programs for revenue generation.
| Category | Details |
|---|---|
| Dimensions | 650 × 350 × 180 mm (compact CEB form factor) |
| Weight | 28 kg |
| Operating Temp. | -35°C to 60°C (suitable for extreme climates) |
| Certifications | CE, UL 1741, IEC 62109, CGC/GV |
| Warranty | 10 years |
Custom Configurations: Tailor AC/DC ratios or grid profiles via ACE Solar’s engineering team.
Global Service: Remote firmware updates + on-site maintenance within 48 hours.
Contact: Admin@ahacetech.com | +86-17309668315
The ACE Solar WIT_29.9~50K-XHU transcends conventional inverters by fusing SiC efficiency with AI-driven energy orchestration. It empowers industries to harness renewable energy with military-grade reliability while pioneering grid independence. As solar technology evolves, this inverter stands as a scalable, eco-conscious nucleus for tomorrow’s smart cities.
For technical documents or partnership inquiries, visit ACE Solar’s official portal or contact the innovation team directly.
