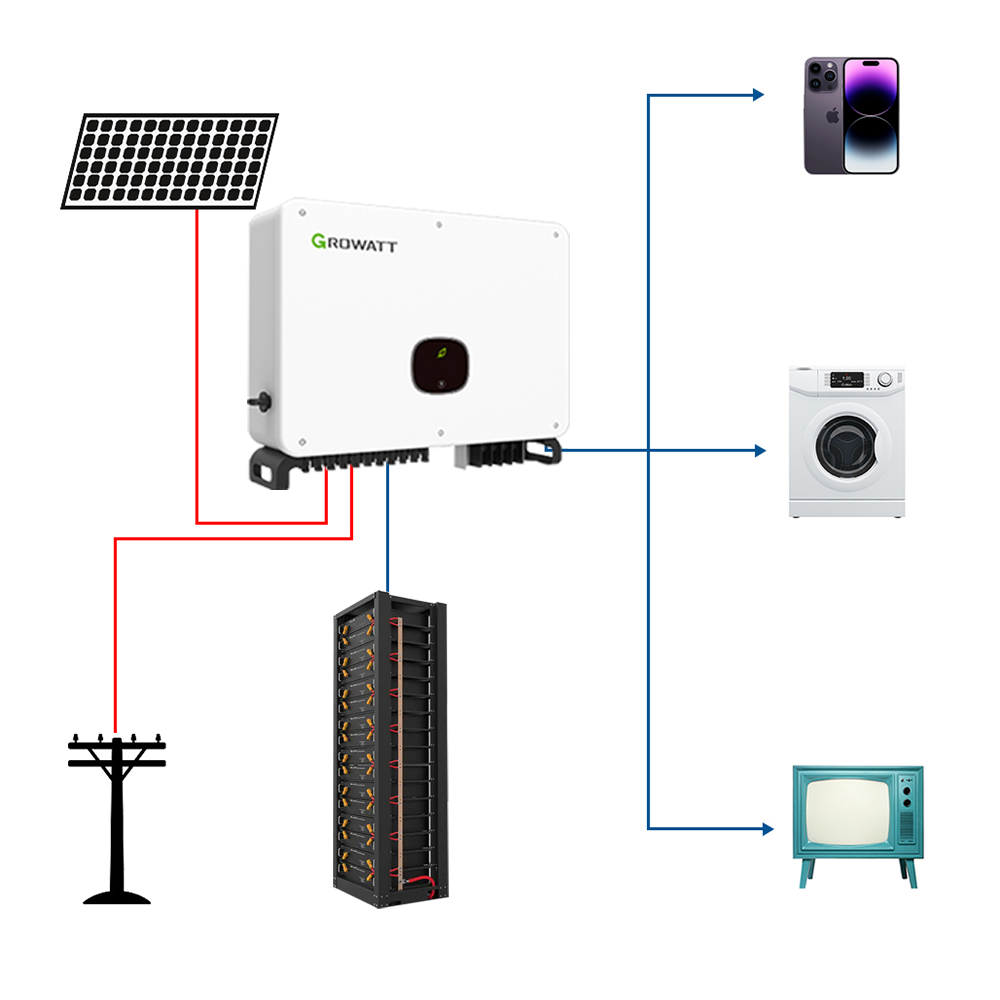

Operational Workflow:
Daytime Solar Production:
Photovoltaic (PV) panels generate DC electricity from sunlight.
The hybrid inverter intelligently converts DC to usable AC power, prioritizing direct supply to your household appliances.
Any surplus energy is automatically directed: stored in the high-capacity LiFePO4 battery bank for later use, or exported back to the utility grid (subject to net metering availability).
Nighttime or Grid Outage Operation:
During power outages or at night, the inverter instantly switches to battery mode.
Stored energy seamlessly powers designated critical loads, ensuring uninterrupted essential electricity.
The system automatically and smoothly reconnects to the grid once stable utility power is restored.
Hybrid Mode for Optimal Efficiency:
In periods of low solar generation (e.g., cloudy days, early morning/evening), the system smartly supplements power.
It draws electricity from the grid to either recharge the batteries or directly supply household loads, maintaining constant power availability.

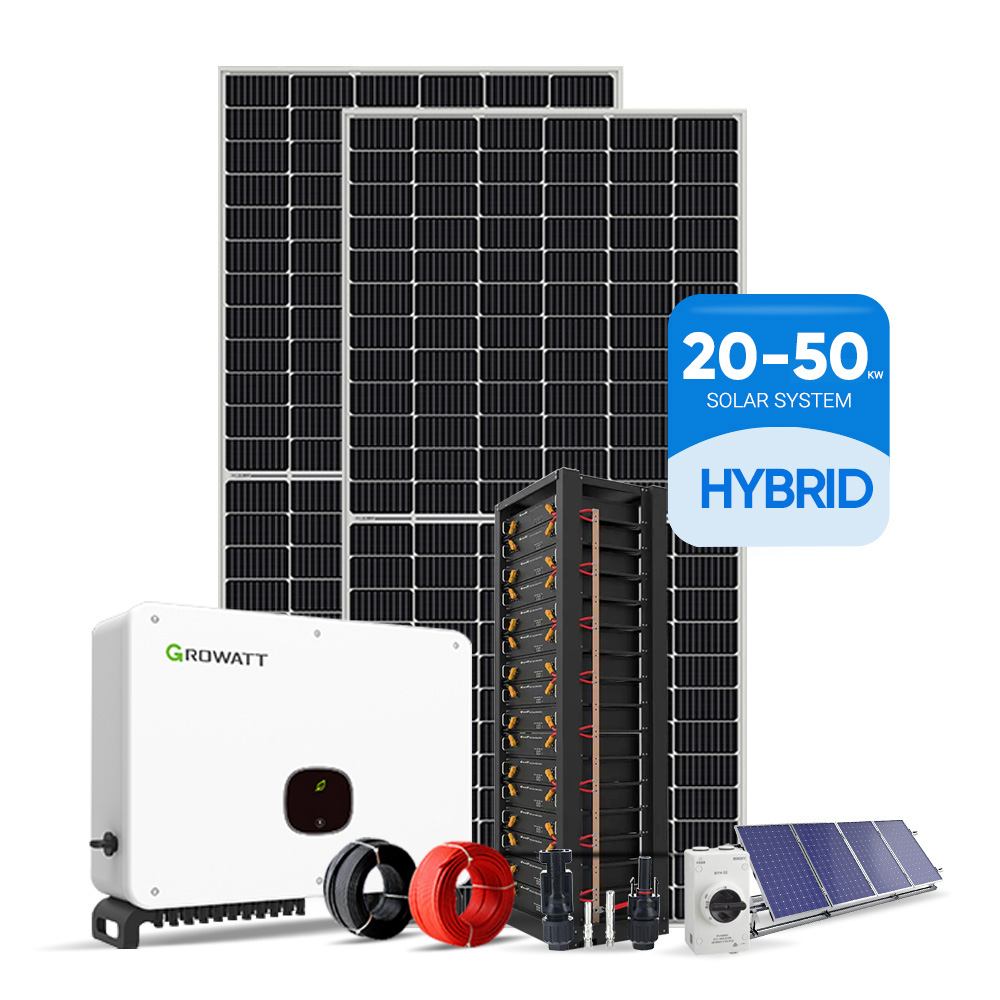

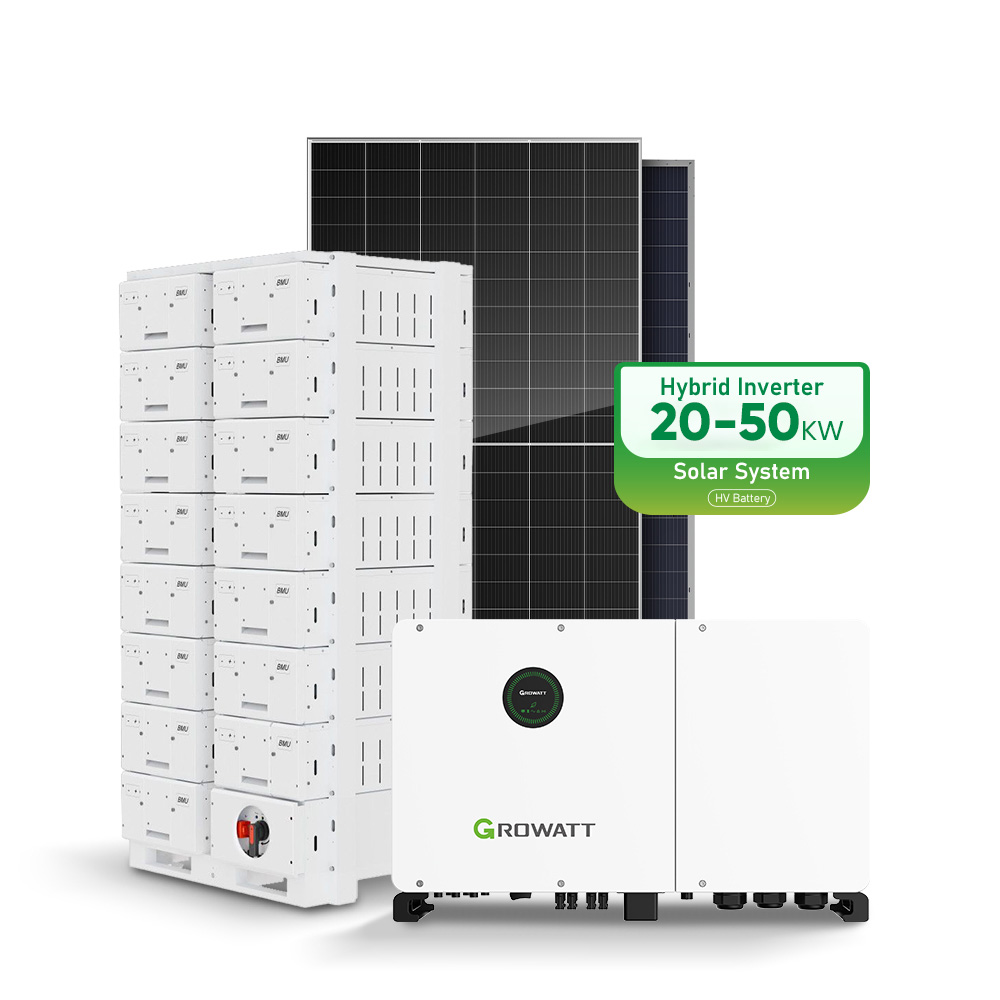

System Specifications:
| Model | 20KW HY | 30KW HY | 40KW HY | 50KW HY |
|---|---|---|---|---|
| PV System Power (kWp) | 21.24 | 33.04 | 42.48 | 51.92 |
| PV Panel Specs (N-type): | ||||
| - Power per Panel (W) | 590 | |||
| - Vmp (V) | 44.05 | |||
| - Voc (V) | 52.62 | |||
| - Dimensions (mm) | 2278x1134x30 | |||
| - Certifications | TUV, CE (IEC61215 & IEC61730) | |||
| Hybrid Inverter Specs: | ||||
| - AC Power (kW) | 20 | 30 | 40 | 50 |
| - Max DC Input (W) | 30,000 | 44,850 | 60,000 | 75,000 |
| - Rated PV Input Voltage | 1000V | |||
| - MPPT Range (V) | 150-850V | |||
| - Output Voltage | 220V/380V/415V | |||
| Battery Bank (Li-ion LiFePO4): | ||||
| - Quantity | 1 Unit | 1 Unit | 1 Unit | 1 Unit |
| - Cell Capacity | 100Ah | 280Ah | 314Ah | 280Ah |
| - Total Capacity (kWh) | 40.96 | 57.35 | 80.38 | 100.35 |
| - Rated Voltage (V) | 409.6 | 204.8 | 256 | 358.4 |
| Installation Components: | ||||
| - Mounting Brackets | Roof or Ground Installation | |||
| - Solar Cable (4mm²) | 400m | 600m | 800m | 1000m |
| - MC4 Connectors | 20 | 30 | 40 | 60 |
