Introducing the STACK200A, the next-generation modular energy storage solution engineered for performance, safety, and effortless scalability. Designed for demanding applications like grid frequency regulation and EV charging stations, this system delivers unparalleled reliability and cost efficiency.
Key Features:
Ultra-Safe Operation: Features an intelligent fire extinguishing system utilizing aerosol technology, activating within an industry-leading 5 seconds of detecting thermal anomalies for maximum safety assurance.
Flexible & Scalable: Achieve your exact energy needs with seamless parallel expansion. Connect up to 12 clusters for a massive total capacity ranging from 15kWh to an impressive 921kWh.

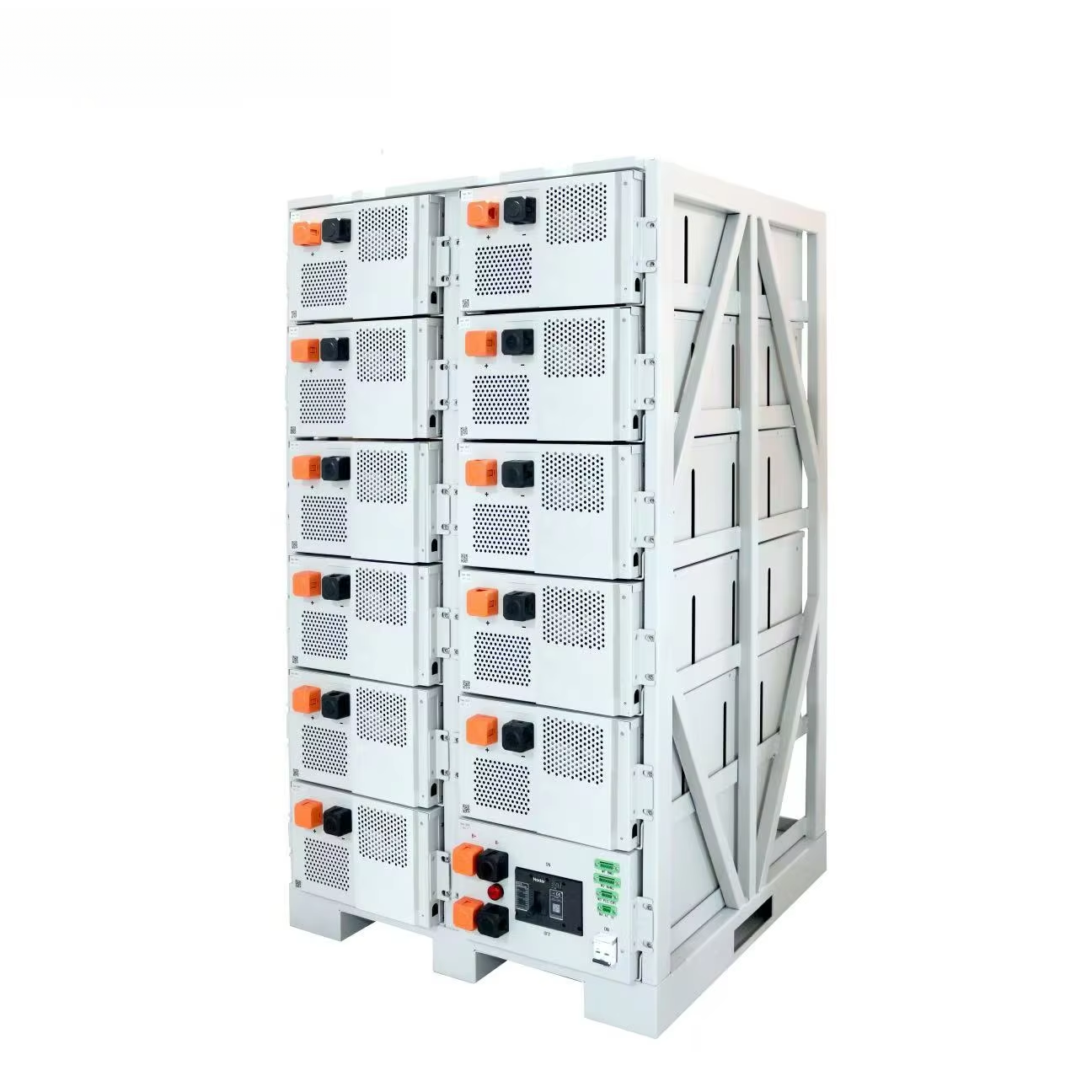

Revolutionary Installation: Experience true plug-and-play simplicity. Our unique rackless, free-stacking design requires zero wiring between modules. Install an entire cluster in just 30 minutes, drastically reducing setup time and labor costs.
High-Performance 1C Rate: Optimized for cost-sensitive, high-throughput scenarios. Supports continuous 1C charge/discharge (100A max) and peak 1.25C discharge (125A for 2 mins), enabling efficient grid services and fast energy transfer.
Robust & Reliable: Built with premium LiFePO4 battery chemistry for exceptional longevity (≥8000 cycles @ 95% DoD, 0.2C, 25°C) and a wide operating temperature range (-20°C to 55°C discharging, 0°C to 55°C charging standard / -20°C to 55°C optional).
Smart Connectivity: Integrated WiFi module enables remote monitoring, control via mobile app, and convenient Over-The-Air (OTA) firmware updates.
Proven Compatibility: Works seamlessly with leading inverters including Ingeteam, Solis, GoodWe, Growatt, Solplanet, SAJ, Deye, Hoymiles, SOLINTEG, and more.
Specifications:

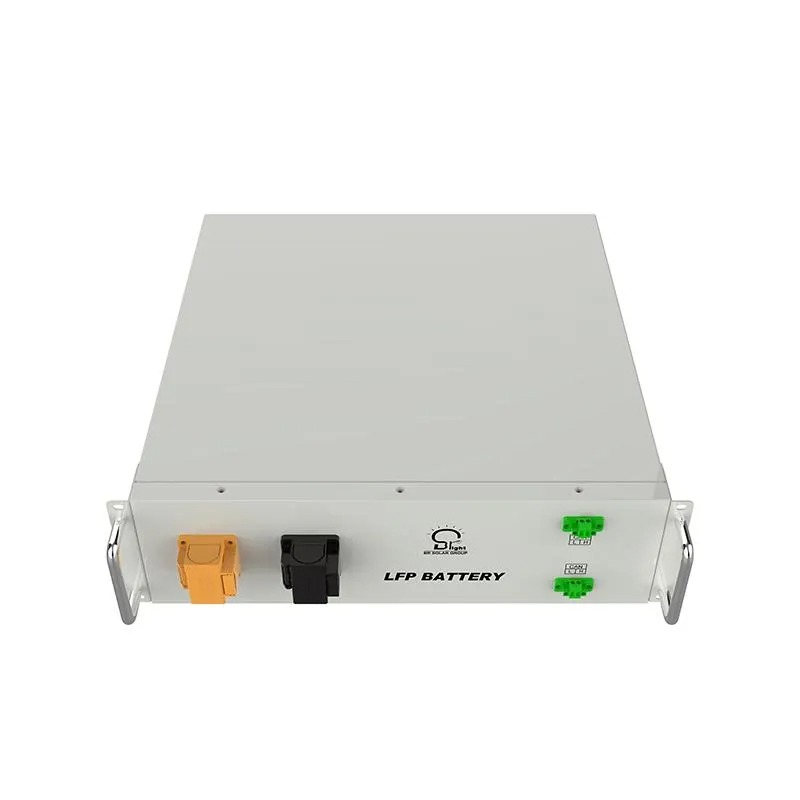

Model: STACK200A
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Module Voltage/Capacity: 192V / 200Ah
Module Weight: 47kg
System Configuration: 3 to 15 modules in series per cluster
System Energy Range (per cluster): 15.36kWh - 76.8kWh
Operating Voltage Range: 134V - 864V
Recommended Charge/Discharge Current: 50A (0.5C)
Max. Continuous Charge/Discharge Current: 100A (1C)
Peak Discharge Current (2 min @ 25°C): 125A (1.25C)
Depth of Discharge (DoD): 95%
Communication Interfaces: CAN, RS485
Cycle Life: ≥8000 cycles / 10 Years* (*Test conditions: 0.2C Charge/Discharge @ 25°C, 95% DoD)
Single Cluster Dimensions (WDH): 590mm * 390mm * (233 + 133*n)mm ("n" = number of battery modules)
Charging Temp. Range: 0°C ~ 55°C (Standard) / -20°C ~ 55°C (Optional)
Discharging Temp. Range: -20°C ~ 55°C
Ingress Protection: IP20
Fire Suppression: Integrated Aerosol Fire Extinguisher
Installation: Stack Type (Rackless)
Cooling: Forced Air Cooling
Connectivity: Built-in WiFi, App Control, OTA Updates
Certifications & Standards: CE-EMC, CE-RED, IEC 62619, IEC 63056, IEC 62477-1, IEC 62040, UN38.3
