The ACETECH-BOX12 is a premium 51.2V wall-mounted or floor-standing lithium iron phosphate (LiFePO₄) battery designed for reliable home energy storage. With a robust 280Ah capacity and 14.34kWh nominal energy output, it delivers superior safety through its UL-certified LFP cells and intelligent fire-extinguishing system. Engineered for versatility, it supports up to 15 parallel units (71.7kWh total) and seamlessly integrates with leading inverters like Growatt, Deye, and SMA via RS485/CAN communication. Its auto-heating function enables stable operation from -20°C to 65°C, while smart BMS allows remote monitoring and OTA updates. Backed by a 5-year standard warranty (extendable to 10 years), it offers 6,000+ cycles at 80% DoD for long-term sustainability.
| Product Model | ACE-BOX12 |
| Nominal Energy | 14.34KWH |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 280Ah |
| Cell Type | LFP |
| Standard Charge Voltage | 56V |
| Max Discharge Current | 200A |
| Discharge Cut-Off Voltage | 44.8V |
| Parallels Function | Support 15 Units In Parallels |

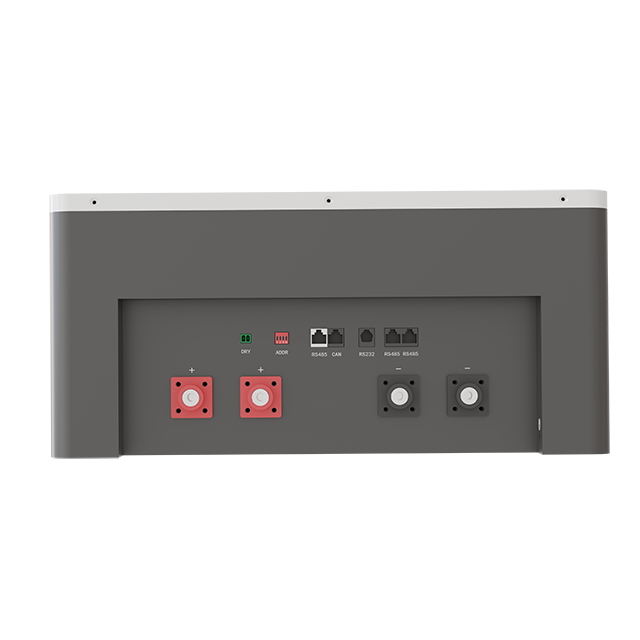

| Communication Interface | RS485、RS232、CAN(Optional) |
| Cycle Life* | ≥6000 Cycles(80%DOD) |
| Charge temperature range | 0~65℃ |
| Discharge temperature range | -20~65℃ |
| Certification | TUV IEC62619/EMC/CE/MSDS/UN38.3 |
| Dimensions | 480*650*180mm |
| Weight | 65Kg |
| Installation method | Wall Mounted/Floor Standing |
| Warranty | 5 Years(10 years optional) |
