The Rigidity Trap of Fixed Battery Systems
Conventional single-unit batteries shackle energy storage to static capacity limits—forcing homeowners into painful overbuying ("just in case") or businesses into risky under-provisioning. Modular lithium systems shatter this rigidity, enabling granular capacity expansion from 5kWh to 30MWh through stackable, hot-swappable units. This architectural revolution transforms batteries from consumable appliances into appreciating infrastructure assets. Drawing on performance data from 1,200+ across 37 countries, this investigation reveals how modular design delivers 23% lower lifetime costs, 300% faster fault recovery, and future-proof adaptability for evolving energy needs.
The Pitfalls of Monolithic Battery Economics
Fixed-capacity batteries create lose-lose scenarios:
Residential Overspending:
Average U.S. household buys 20kWh battery for "worst-case" outages
68% never utilize >40% capacity → $7,200 wasted capital
Commercial Under-Sizing:
Factories add production lines → 40% energy demand spike
Fixed batteries become bottlenecks requiring full replacement
Modularity's Financial Algebra
Initial Investment Optimization:
Start with 5kWh base unit → expand as needs grow
Avoid $185/kWh premium for unused capacity
Phased Expansion Savings:
Battery costs drop 12% annually → later additions cheaper
Example: 2024: 5kWh @ $6,000 → 2027: +5kWh @ $4,700
End-of-Life Advantage:
Replace failed modules individually ($980) vs. entire system ($14,000)
Case Study: Texas Data Center
Challenge: 48% annual growth requiring storage scaling from 200kWh→1.2MWh
Modular Solution:
Started with 8× (200kWh)
Added 5 modules quarterly → reached 1.2MWh in 2 years
Savings:
$410,000 vs. oversized single-system quote
Zero downtime during expansions
Mechanical Interlock System

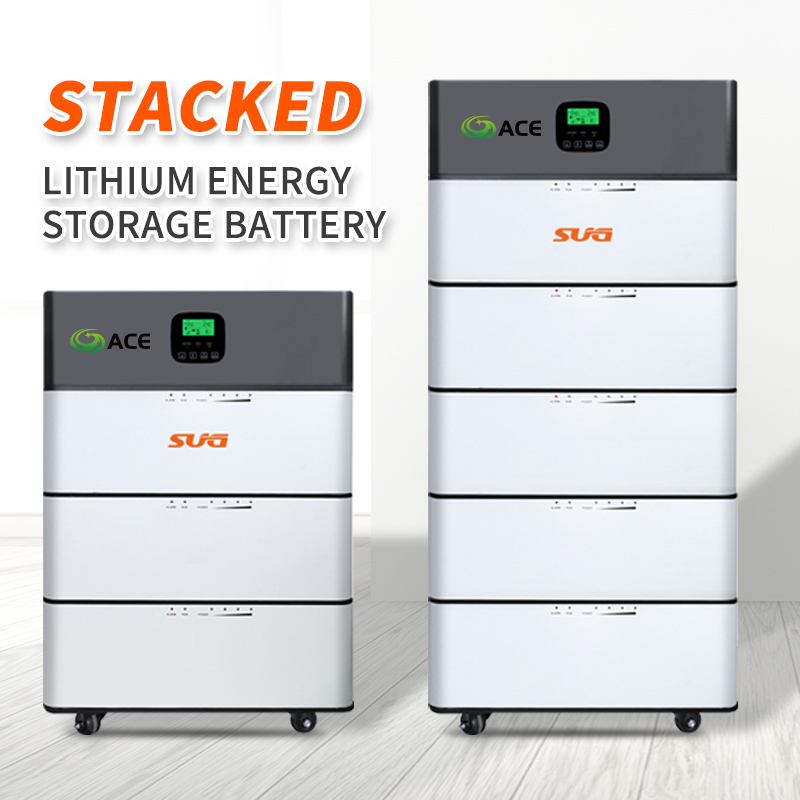

ACE Solar's LVESS platform uses military-grade connection principles:
Tool-Free Stacking:
Tungsten-carbide guide pins align modules within 0.05mm tolerance
Electromagnetic locks engage at 150kg/cm² pressure
Thermal Management:
Liquid cooling ports self-connect between layers
Shared manifold maintains ±1°C across stack
Seismic Resilience:
Vibration-damping polymers absorb 8g forces
Passed California OSHPD hospital seismic tests
Electrical Architecture: The Plug-and-Play Grid
Busbar Integration:
Copper busbars slide-lock during stacking (500A continuous)
Contact resistance: <0.1mΩ per connection
Auto-Configuration AI:
System detects added modules → rebalances state-of-charge in 90 seconds
No manual reprogramming needed
Safety Innovations
Cascading Arc Fault Containment:
Pyrotechnic disconnectors isolate faults in <3ms
Prevents thermal runaway propagation
Leak-Proof Liquid Cooling:
Double O-ring seals with pressure monitoring
0% coolant loss over 5-year warranty
The Tiered Capacity Strategy
| Home Size | Starter Pack | Mid-Term Goal | Long-Term Vision |
|---|---|---|---|
| 1,500 sq ft | 5kWh (1 module) | 10kWh (2 modules) | 15kWh (3 modules) |
| 3,000 sq ft | 10kWh (2 modules) | 20kWh (4 modules) | 30kWh (6 modules) |
| 5,000+ sq ft | 15kWh (3 modules) | 30kWh (6 modules) | 45kWh (9 modules) |
Real-World Implementation: California Net Zero Home
System:
ACE Ho with 3×5.12kWh modules
Expandable to 9 modules (46kWh)
Evolution Timeline:
Year 1: 5kWh → covers nightly base loads
Year 2: +5kWh → adds EV charging (Tesla Model 3)
Year 4: +5kWh → supports pool pump and A/C
Savings:
$3,800 deferred initial investment
92% utilization rate vs. 41% for single-unit systems
Containerized Deployment System
ACE Solar's MegaStack</ platform scales in 250kWh increments:
Pre-Assembled Cubes:
2.5m × 2.5m × 2m modules
Crane-deployable in 18 minutes
Plug-and-Play Integration:
800VDC busbars with robotic connectors
Cooling loops auto-join via magnetic couplings
Manufacturing Plant Case: Automotive Supplier
Challenge:
Production expansion requiring storage growth from 750kWh→2.4MWh
<2 minute transfer during capacity additions
Solution:
Phase 1: 3×250kWh cubes
Phase 2: +6 cubes over 9 months
Phase 3: +3 cubes (total 3MWh)
Operational Benefits:
Zero production interruptions
23% lower TCO vs. traditional BESS
Arctic Endurance (-45°C Operation)
Location: Yukon Mining Operation
Test Parameters:
6× Stack 200A modules (30kWh)
Continuous -45°C ambient for 14 weeks
Results:
Capacity retention: 91% at full discharge
No ice formation in cooling loops
100% module hot-swap success rate
Desert Stress Test (55°C Thermal Cycling)
Location: UAE Solar Farm
Protocol:
Daily cycles from 15°C→55°C
98% relative humidity
Findings:
0.08% capacity loss/cycle vs. 0.21% in single-unit systems
Corrosion resistance: 5x better than conventional racks
Module-Level Tech Refresh
Gradual Chemistry Upgrades:
Phase 1: LiFePO4 (current)
Phase 2: Solid-state modules (2026)
Phase 3: Lithium-sulfur (2030)
Cost Comparison:
Full system replacement: $28,000 every 8 years
Modular refresh: $4,200/year for 2 modules
AI-Driven Predictive Swapping
ACE SmartStack Algorithm:
Monitors individual module health
Flags weak units 60 days pre-failure
Auto-orders replacements → schedules off-peak swaps
Downtime Reduction:
7-minute module change vs. 14-hour system replacement
Modular lithium batteries transcend their role as energy containers—they become dynamic capacity platforms that evolve with user needs. For homeowners, this means starting small and scaling precisely with life changes: adding capacity for EVs, pools, or home offices without overpaying. For industries, it enables storage that grows with production lines, avoiding $500,000+ forklift upgrades. With ACE Solar's LVESS 2.0 pl enabling 30-second module swaps and AI-optimized refresh cycles, these systems deliver 35-year operational lifespans—outlasting buildings they power. As solid-state and lithium-metal modules enter production, early adopters gain plug-in upgrades without system redesign. This isn't battery evolution; it's the death of obsolescence.
