The global hybrid solar market is experiencing unprecedented growth, driven by rising energy costs, climate mandates, and technological breakthroughs. With solar capacity projected to expand by 341 GW in 2025 and hybrid systems claiming 35% of new installations , consumers face both opportunities and complexities in selecting the right solution. This article deciphers 2025’s critical market trends—from perovskite-HJT tandem cells to blockchain microgrids—and provides a granular buyer’s guide to navigating certifications, component selection, and ROI optimization.
1.1 Efficiency Breakthroughs in Photovoltaics
Perovskite-HJT Tandems: Lab efficiencies now reach 33%, leveraging perovskite’s broad light absorption and HJT’s temperature stability. Commercial deployment (expected by 2027) promises 20% higher yields in low-light conditions, ideal for Nordic winters or desert dawns.
Anti-Reflective and Anti-Dust Coatings: ACE Solar’s desert-grade panels integrate hydrophobic layers and robotic brush cleaners, reducing efficiency loss to <1% monthly in sandy environments like Saudi Arabia’s NEOM project.
1.2 Storage Revolution: Beyond LiFePO₄
Solid-State LiFePO₄: Replacing liquid electrolytes with ceramic polymers boosts energy density by 40% and cycle life to 9,000 cycles (ACE prototypes). This enables compact storage for balcony units or offshore platforms.
Sodium-Ion Batteries: With 45–55% lower costs than lithium variants (¥0.42/Wh vs. ¥0.80/Wh for LiFePO₄), sodium-ion dominates budget-conscious markets. Natron Energy’s 15-minute fast charging suits commercial peak-shaving.
1.3 Policy and Regional Demand Shifts
Europe’s Balcony Boom: Germany’s €500–€1,000 subsidies and France’s "Solar for All" mandate (requiring balcony-ready wiring in new apartments) propelled sales of sub-800W plug-and-play kits. ROI now averages 3.5 years with €0.40/kWh tariffs.
U.S. Tax Credits: Federal rebates cover 30% of system costs for installations with ≥10kWh storage, slashing payback periods to 5–7 years in sun-rich states like California.
2.1 Core Component Selection
Inverters: Prioritize models with ≥97% efficiency and dual MPPT trackers (e.g., ACETECH’s VICTOR NM-IV-6.2KW PLUS). Key specs:
MPPT Voltage Range: 90–450VDC for compatibility with HJT panels.
Surge Capacity: ≥200% rated power (e.g., 12.4kVA for 6.2kW models) to handle motor startups.
Batteries:
For longevity: LiFePO₄ (6,000+ cycles, 10-year warranty like ACE’s Stack 200A).
For extreme cold: Arctic-grade variants operational at -40°C (Kolyma Highway case).
Panels: Tier-1 HJT modules (e.g., ACE’s 720W, 22.8% efficiency) outperform PERC in low-light and high-heat scenarios.
2.2 Certifications and Warranty Deep Dive
Non-Negotiable Certifications:
CE/IEC 62619: Mandatory for grid-tied systems in the EU, covering safety and EMC.
UL 9540: For U.S. energy storage, ensuring fire resistance and thermal runaway prevention.
Warranty Pitfalls: Avoid "pro-rata" clauses that reduce coverage over time. ACE Solar’s Stack 200A offers 10-year full replacement for defects and <2%/year degradation.
2.3 Economic Analysis and ROI Optimization
Payback Period Drivers:
Energy Prices: Regions with tariffs >$0.30/kWh (e.g., Germany, Australia) achieve payback in <5 years.
Net Metering Policies: California’s NEM 3.0 reduces credits by 75%, making battery storage essential for ROI.
Cost-Saving Tactics:

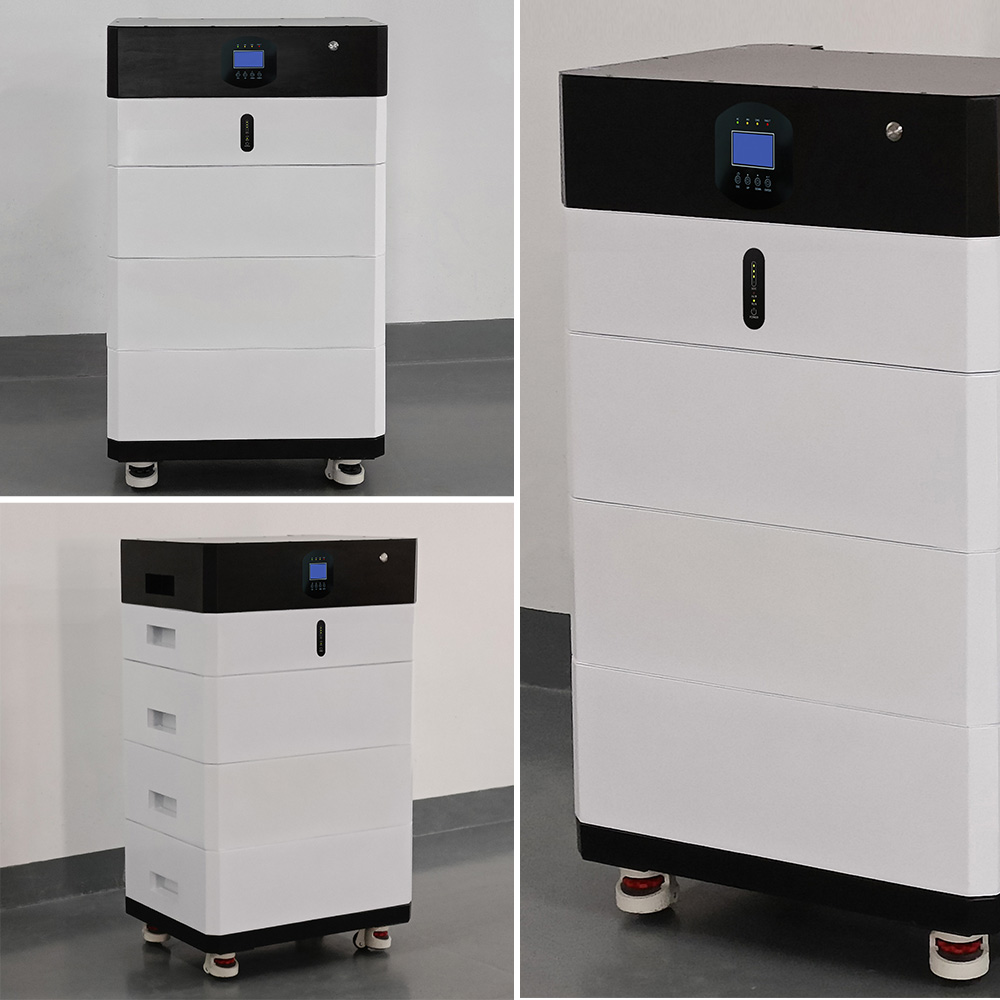

Modular Design: ACE’s Stack 200A allows incremental expansion (start with 5kWh, add modules as budgets allow).
OEM Customization: For commercial projects, ACE’s ODM services tailor systems to local tariffs (e.g., Chile’s mine site saved $18,000/year via peak-shaving).
Table: Hybrid Kit ROI by Region (5kW System)
| Region | System Cost | Annual Savings | Payback Period |
|---|---|---|---|
| Germany (Urban) | €7,500 | €1,800 | 4.2 years |
| Australia (Rural) | AUD 12,000 | AUD 2,500 | 4.8 years |
| California (USA) | USD 18,000 | USD 2,200 | 8.2 years* |
| Saudi Arabia | SAR 40,000 | SAR 9,000 | 4.4 years |
| Under NEM 3.0; pre-2023 payback was 5.1 years. |
3.1 Blockchain-Enabled Microgrids
Spain’s 101.6GW solar network trials peer-to-peer (P2P) energy trading via smart contracts. Factories sell surplus solar to neighbors during off-peak hours, cutting grid fees by 18% and decentralizing distribution.
3.2 AI-Driven Predictive Maintenance
ACE Solar’s cloud platform uses machine learning to forecast panel degradation or inverter faults. In Nigerian agricultural sites, this reduced downtime by 40% and extended component lifespans by 3 years.
3.3 Gravity and Compressed Air Storage
Gravity Storage: China Tianying’s 26MW/100MWh project in Rudong achieves ¥0.50/kWh levelized costs—lower than most lithium systems. Ideal for mountainous regions lacking water bodies for pumped hydro.
Compressed Air: Salt cavern-based systems (e.g., China’s 300MW Feicheng project) offer 30-year lifespans and near-zero emissions, competing with gas peaker plants.
4.1 Grid Integration Hurdles
Frequency Instability: Hybrid inverters must maintain 49–51Hz output (per ACE specs) to avoid grid disconnection during cloud transients. Solutions:
Synchronous Condensers: Mimic rotational inertia in battery-dominated grids (deployed in South Australia).
AI Frequency Regulators: ACE’s inverters adjust discharge rates within 20ms of grid deviations.
4.2 Recycling and Sustainability
Battery Waste: Only 5% of LiFePO₄ batteries are recycled today. ACE’s closed-loop program recovers 95% of lithium via hydrometallurgy, reducing new mining demand.
Panel Circularity: New EU regulations mandate 85% panel recycling by 2030. ACE’s glass-EVA laminate separation tech achieves 92% material recovery.
Hybrid solar kits are no longer mere backup solutions but foundational assets for energy sovereignty. As HJT-perovskite cells and solid-state batteries near commercialization, early adopters gain first-mighter advantages: locking in subsidies, avoiding grid volatility, and future-proofing against climate disruptions. For buyers, success hinges on three pillars:
Technology Agnosticism: Pair HJT panels with sodium-ion storage where costs trump density.
Certification Rigor: Prioritize UL/CE over regional approvals for global resale value.
Policy Foresight: Leverage tax credits now, while designing for blockchain microgrid readiness.
With global hybrid capacity set to triple to 1.2 TW by 2030, the transition isn’t optional—it’s strategic.
