Product Description

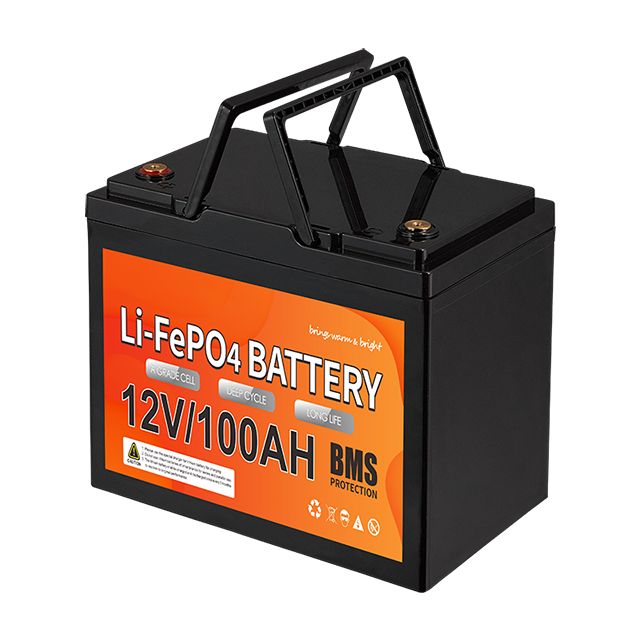

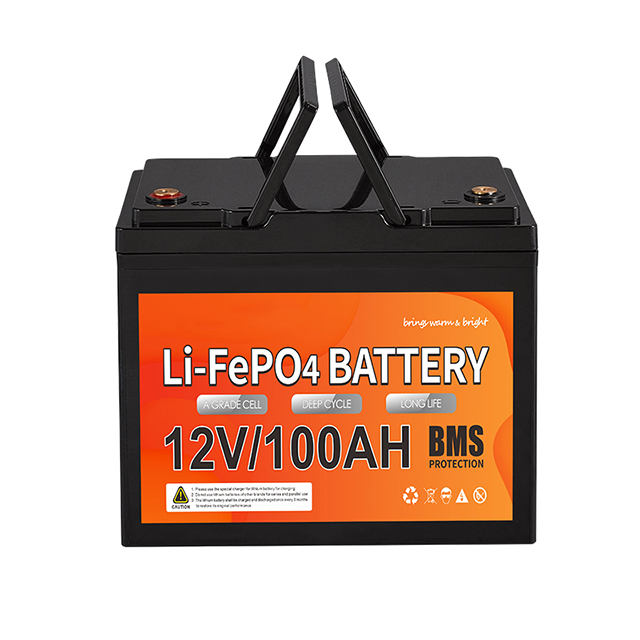

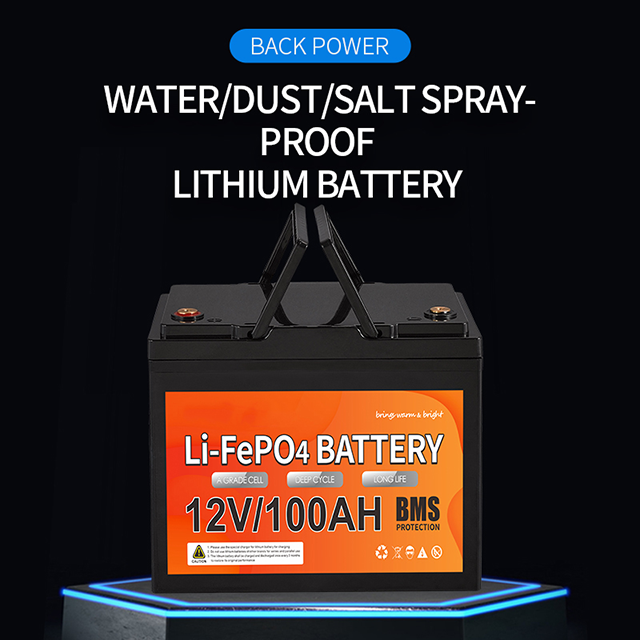

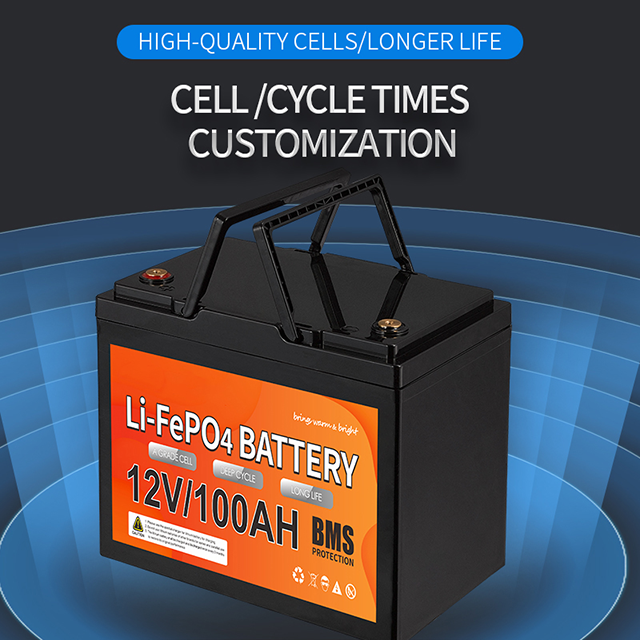

The PowerMax Pro Series LiFePO4 Battery is a cutting-edge energy storage solution designed to replace traditional lead-acid batteries across residential, commercial, and industrial applications. Engineered for reliability and longevity, these lithium iron phosphate (LiFePO4) batteries feature smart BMS technology, IP65 waterproof housing, and low-temperature self-heating capabilities, making them ideal for solar systems, UPS backups, and off-grid power.
Key Features & Specifications:

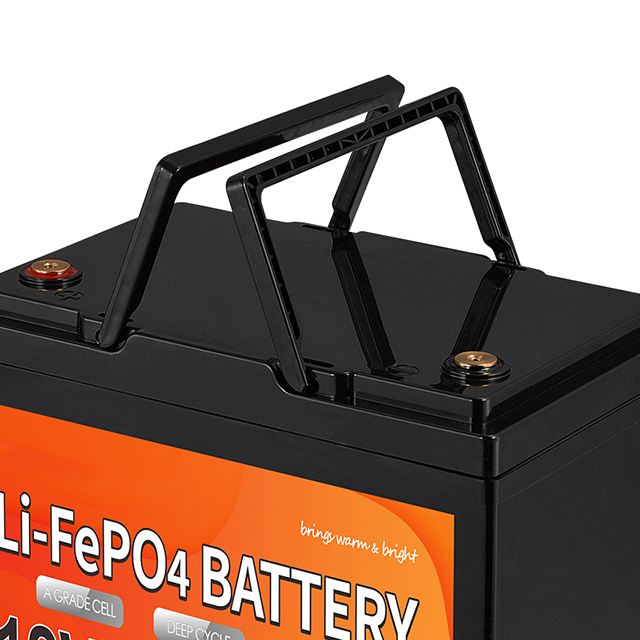

Smart Monitoring: Integrated LCD/Bluetooth connectivity with a dedicated app for real-time tracking of voltage, capacity, temperature, and BMS status. The screw-lid design allows easy internal inspection of cells and BMS components.
Modular Scalability: Supports up to 4 units in series (51.2V systems) for flexible voltage configurations.
Robust Performance: High-rate discharge (up to 200A continuous), 2500+ cycles at 80% DOD, and operation from -20°C to 55°C (with self-heating below freezing).
Safety & Durability: Multi-layer BMS protection (overcharge, over-discharge, short-circuit, temperature), IP65-rated enclosure, and flame-retardant materials.
| Parameter | 24Ah | 30Ah | 50Ah | 100Ah | 130Ah | 200Ah | 400Ah |
|---|---|---|---|---|---|---|---|
| Nominal Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V |
| Nominal Capacity | 24Ah | 30Ah | 50Ah | 100Ah | 130Ah | 200Ah | 400Ah |
| Max Charge Current | 6A | 15A | 25A | 50A | 65A | 100A | 100A |
| Max Discharge Current | 6A | 15A | 25A | 50A | 65A | 100A | 200A |
| Internal Impedance | ≤80mΩ | ≤35mΩ | ≤20mΩ | ≤20mΩ | ≤18mΩ | ≤10mΩ | ≤10mΩ |
| Cycle Life (80% DOD) | 2500+ cycles (all models) | ||||||
| Operating Temp. (Charge) | 0°C to 55°C | ||||||
| Operating Temp. (Discharge) | -20°C to 55°C | ||||||
| IP Rating | IP65 (Water/Dust Resistant) |
