Product Description:

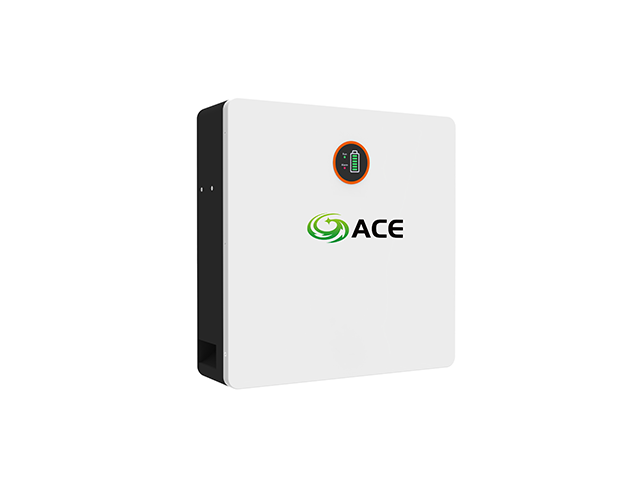

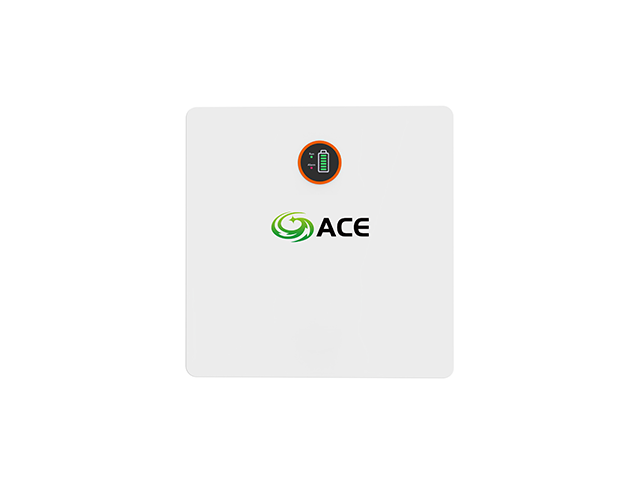

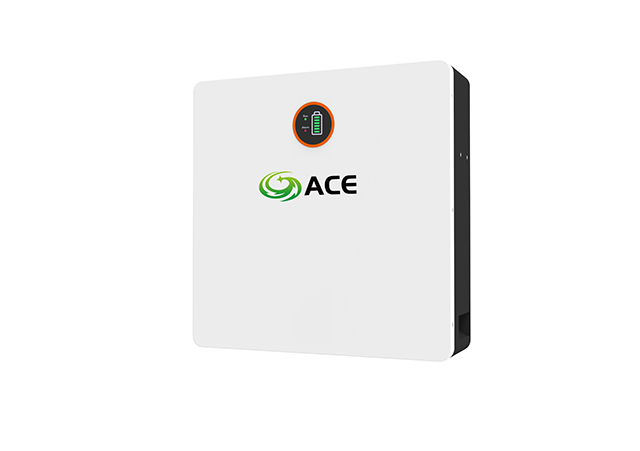

The ACE Solar BOX 15 Series is a premium wall-mounted lithium iron phosphate (LiFePO4) energy storage solution designed for modern residential and commercial applications. With capacities ranging from 5.12kWh to 15.36kWh per unit and support for up to 50 units in parallel, this scalable system delivers 10.24kWh–512kWh total capacity. Engineered for safety and reliability, it features smart BMS technology compatible with major hybrid/off-grid inverters. The sleek, space-saving design (IP21 rated) enables flexible wall or floor mounting, seamlessly integrating into homes, offices, and commercial spaces while maximizing energy independence.
Key Parameters:
| Specification | BOX 15 (5.12kWh) | BOX 15 MAX (10.24kWh) | BOX 15 PRO (15.36kWh) |
|---|---|---|---|
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Energy | 5,120Wh | 10,240Wh | 15,360Wh |
| Max. Continuous Current | 100A | 200A | 200A |
| Peak Current (3s) | 200A | 200A | 400A |
| Dimensions (H×W×D) | 442×500×140mm | 442×820×142mm | 660×820×140mm |
| Weight | 41.88 kg | 78.85 kg | 120.77 kg |
| Operating Temperature | Charge: 0°C–55°C / Discharge: -20°C–60°C | ||
| Communication | RS232, CAN, RS485 |
Frequently Asked Questions (FAQ):
How many units can be connected?
Up to 50 units in parallel for a total capacity of 512kWh.
Is mixed SOC (state of charge) supported?
Yes, the BMS supports mixing modules at different SOC levels without compromising battery life.
What safety features are included?
Short-circuit lockout, surge protection, and LiFePO4 chemistry ensure UL-certified safety.
Can it be installed outdoors?
No, IP21 rating is designed for indoor use only.
What is the lifespan?
≥6,000 cycles at 80% depth of discharge (DoD) with a 10-year design life.
