In an era defined by energy transition and grid modernization, integrated energy storage solutions are no longer a luxury but a necessity for commercial, industrial, and utility-scale applications. This comprehensive guide delves into the technical specifications, operational modes, and core components of a robust 500kWh/500kW Battery Energy Storage System (BESS). Designed for reliability, intelligence, and scalability, such a system represents a cornerstone for achieving energy independence, cost savings, and grid stability.

Part 1: System Configuration & Architecture

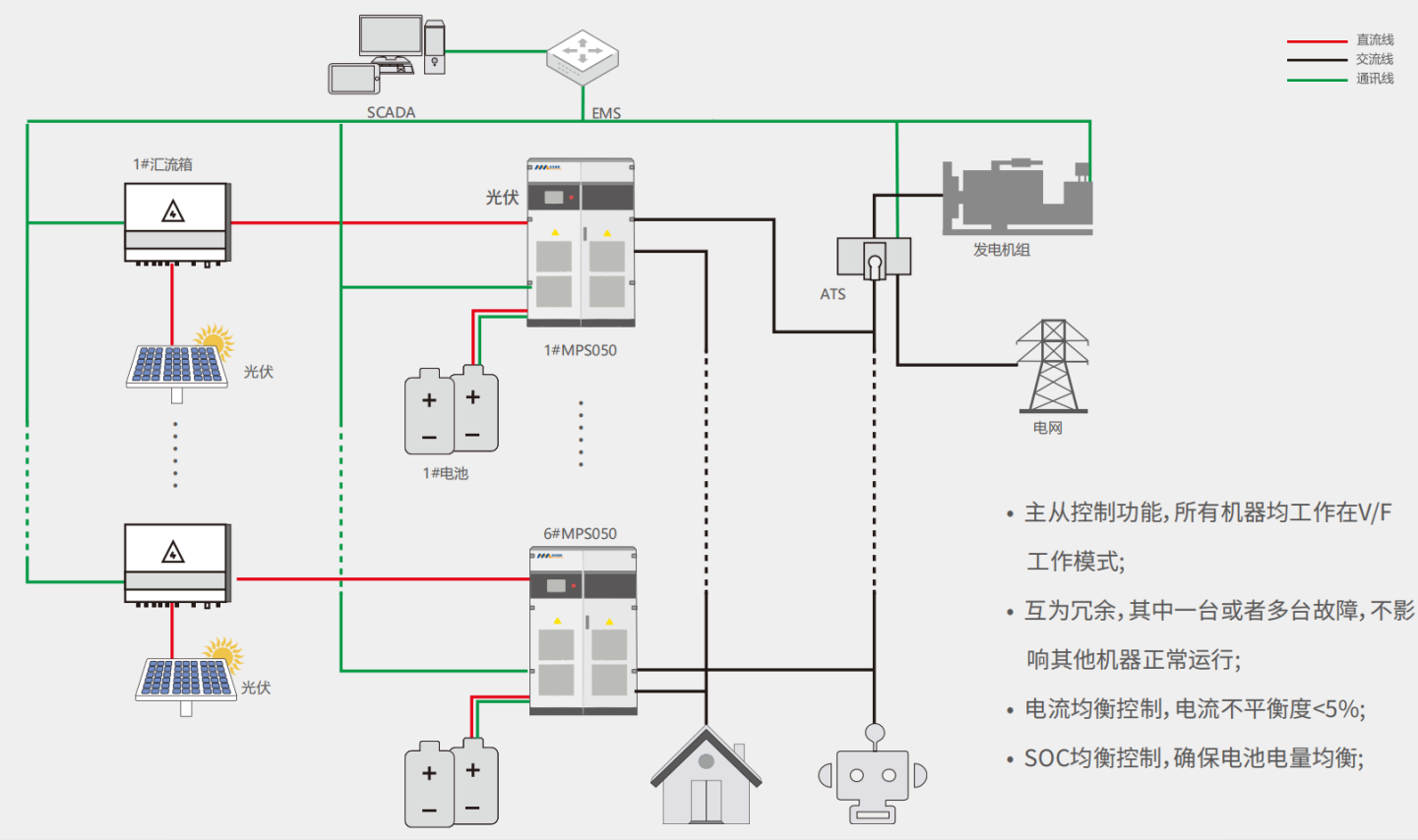

1.1 System Block Diagram & Core Philosophy

The system is built on a modular, master-slave control architecture ensuring maximum uptime and performance.

  • Control Scheme: All power conversion units operate in V/F mode with master-slave logic. This ensures seamless synchronization and load sharing.

  • Built-in Redundancy: The system is designed for high availability. The failure of one or multiple units does not impact the operation of the remaining units, guaranteeing continuous power supply.

  • Advanced Balancing: Features include current balancing (with an imbalance of <5%) and State-of-Charge (SOC) balancing across battery strings, which are critical for maximizing battery lifespan and system efficiency.

The physical integration involves:

  • Power Paths: Clearly segregated DC, AC, and communication cabling.

  • Control Hierarchy: Supervisory Control and Data Acquisition (SCADA) and an Energy Management System (EMS) sit at the top, orchestrating the entire system.

  • Field Components: Multiple combiner boxes, MPPT charge controllers, battery racks, and an Automatic Transfer Switch (ATS) for grid/generator interaction.

1.2 Physical System Layout

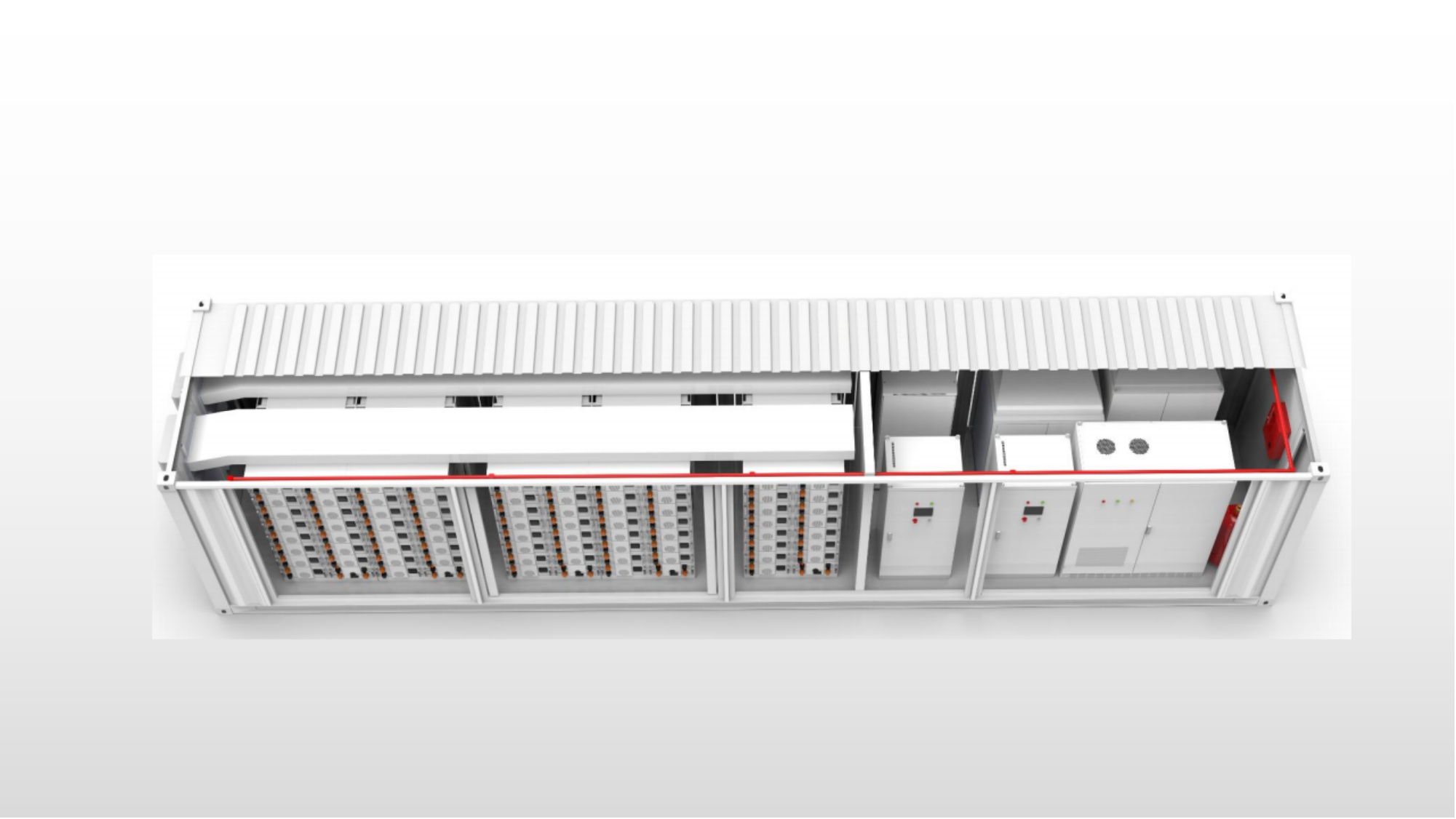

The system is typically housed in a standardized, environmentally controlled 20-foot container, featuring:

  • Thermal Management: Dedicated air conditioning and air flue systems.

  • Safety: An integrated fire extinguishing system.

  • Power Conversion: Transformer, High Voltage Control Box, Control & Combiner Cabinet, DC-DC converters, and the central DC/AC bi-directional inverter.

  • Energy Core: The lithium iron phosphate (LiFePO4) battery racks.

1.3 Bill of Materials (Key Components)

Item

Quantity

Description

Comments

Battery System (497.66 kWh)

1 Set

Total System Capacity

Battery Module (76.8V, 120Ah)

54

Core energy storage unit with integrated BMU

High Voltage Controller Box (1500V, 200A)

6

Manages and protects battery strings

Control & Combiner Cabinet (1500V, 1250A)

1

Central point for combining multiple battery strings

Power Conversion System (PCS)

MPS500 Hybrid Inverter

1

500kW bi-directional grid-tie/off-grid inverter

Control & Housing

Energy Management System (EMS)

1

System brain for optimization and scheduling

20ft Outdoor Container

1

IP54 rated, includes lighting, fire system, racks, and A/C

System Block Diagram1.png

Part 2: Operational Modes & Intelligence

The system's versatility is unlocked through multiple software-defined working modes.

2.1 On-Grid Modes (All with optional Zero-Export)

  1. Zero Export Mode: Prevents any excess photovoltaic (PV) power from feeding back to the grid, ideal for locations with strict interconnection policies.

  2. Load-First Mode: PV power prioritizes the local load. Excess charges the battery. Shortfalls are covered by battery discharge, with grid support as a final backup that can also charge the battery at high current if needed.

  3. Battery-First Mode: PV power prioritizes charging the battery to a set target. Excess supplies the load. If PV is insufficient, the grid assists in charging. Includes an automatic maintenance discharge (~20% rated power weekly) if the battery remains idle to preserve health.

  4. Economy Mode (Time-of-Use Based):

    • Off-Peak: Behaves like Battery-First mode, storing cheap energy.

    • Shoulder: Grid does not charge/discharge the battery. PV supplies load, excess charges battery.

    • Peak: Grid does not charge battery. PV and stored battery energy jointly supply loads to avoid expensive peak tariffs.

  5. Peak Shaving Mode: Actively limits the maximum power drawn from the grid to a predefined threshold. The system intelligently uses PV and battery to ensure total demand (load + charging) stays below this limit, reducing demand charges.

2.2 Off-Grid Mode

Operates as an independent microgrid.

  • PV and battery supply the load. Excess PV charges the battery.

  • If battery depletes to its low-voltage threshold, the system can either shut down (default) or automatically start a backup generator via a dry contact signal.

2.3 Optional Function: Generator Integration

  • Automatic Start/Stop: In off-grid mode, the EMS can automatically start a generator when the battery is low, using it to power loads and recharge the battery.

  • Charging Control: PV charging is limited to the battery's maximum acceptance rate when the generator is running.

  • Connection: Requires an ATS if both grid and generator are connected to the system inputs.

LIFEPO4 Battery.png

Part 3: Deep Dive into Core Components

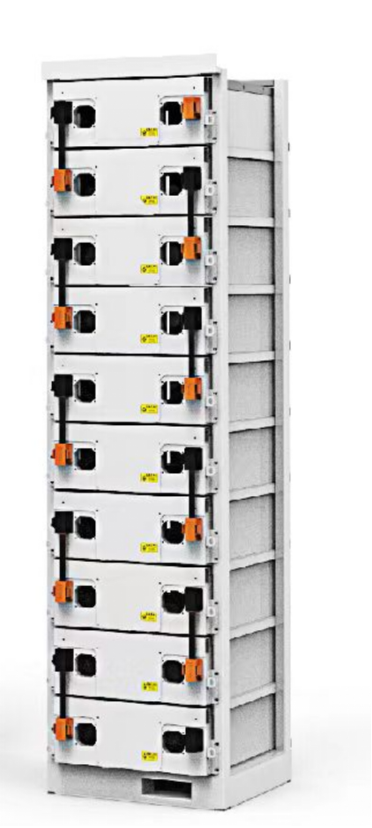

3.1 LiFePO4 Battery System

Key Advantages: Safety, long cycle life, and stability.

Basic Parameters

Specification

Nominal System Voltage

691.2 V DC

Nominal System Capacity

82.944 kWh (per string)

Module Voltage/Capacity

76.8 V DC / 120 Ah (9.216 kWh)

Charge Voltage/Current

777.6 V DC / 120 A

Discharge Cut-off Voltage/Current

604.8 V DC / 120 A

Design Life

10+ years

Cycle Life

>4000 cycles

3.2 MPS500 500kW Hybrid Inverter

The heart of the power conversion, this unit is versatile and robust.

  • AC Grid (On-Grid): 500kW rated power, 400VAC, 722A. Wide voltage (320-460V) and frequency (45-65Hz) ranges. THDi <3%, unity power factor.

  • AC Off-Grid: 500kVA capacity, low voltage distortion (THDu ≤1% linear load).

  • PV Input: Up to 1000V max input, MPPT range 500-850V. Compatible with large PV arrays.

  • Battery Interface: Wide DC input range (500-850V). High charging capability.

  • Robust Design: IP20, air-cooled, operates from -30°C to 55°C, up to 5000m altitude (with derating above 3000m).

  • Communication: Supports RS485 and CAN for BMS, and RS485/TCP/IP for EMS/SCADA integration.

3.3 20ft Container & Integrated Subsystems

  • Battery Management System (BMS): Provides critical monitoring, cell balancing, insulation detection, protection alarms, and data communication.

  • Power Conversion System (PCS) Features: Wide voltage input, 110% continuous overload capability at 40°C, fast charge/discharge switching, reactive power support (up to 500kVAr), and LVRT compliance.

  • Fire Protection System: Includes automatic detection, manual/auto alarms, control room indicators, fault monitoring for circuits, and a backup UPS for the alarm controller.

  • Air Conditioning System: Essential for battery lifespan. Features power-off memory, remote fault reporting via RS485, intelligent fuzzy logic control, cooling/heating/dehumidifying modes, and is built for >2500 hours of continuous, reliable operation.

3.4 Energy Management System (EMS) & Microgrid Energy Cloud

The "Brain" of the operation. The EMS is a highly intelligent, secure, and scalable platform for:

  • Real-time Monitoring & Control: Of all system components.

  • Optimization Analysis: Executing the operational modes (Economy, Peak Shaving, etc.) based on algorithms and forecasts.

  • Cloud Connectivity: The Microgrid Energy Cloud enables remote oversight, advanced analytics, performance reporting, and fleet management, turning a local BESS into a smart grid asset.

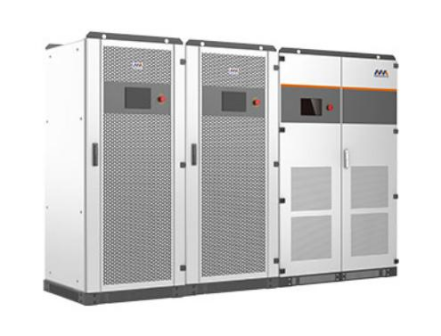

MPS 500KW.png

A 500kWh/500kW energy storage system is a sophisticated integration of high-density batteries, intelligent power electronics, and predictive software. It transcends simple backup power, offering tangible financial returns through energy arbitrage, demand charge reduction, and increased self-consumption of renewables. Furthermore, it enhances grid resilience and paves the way for a sustainable, decentralized energy future. By understanding its configuration, modes, and components, stakeholders can make informed decisions to harness its full potential.

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of the master-slave control in this system?
A: It provides inherent redundancy and scalability. If the master unit fails, another unit seamlessly takes over, ensuring no single point of failure. It also simplifies parallel operation for current sharing and system expansion.

Q2: Can this system completely eliminate my electricity bill from the grid?
A: While it can significantly reduce your grid dependence and charges (especially demand charges), complete elimination depends on your load profile, the size of your PV array, and local regulations (like zero-export limits). The Economy and Peak Shaving modes are specifically designed to maximize bill savings.

Q3: How does the "Battery-First" mode help with battery longevity?
A: The weekly maintenance discharge (if the battery hasn't been used) is key. It prevents the battery from staying at a high, static SOC for prolonged periods, which can cause stress and capacity degradation, thereby maintaining its chemical activity and health.

Q4: What makes LiFePO4 batteries suitable for this application?
A: LiFePO4 chemistry offers excellent thermal and chemical stability, enhancing safety. It boasts a long cycle life (>4000 cycles) and a flat voltage discharge curve, which is ideal for the extended daily cycling required in commercial energy storage. Its 10+ year design life ensures a strong return on investment.

Q5: Is the system capable of operating in areas with weak or unstable grids?
A: Yes. The inverter features a wide voltage and frequency input range and includes Low Voltage Ride Through (LVRT) capability. This allows it to remain connected and support the grid during short-term voltage sags or disturbances, unlike traditional inverters that would simply disconnect.

Q6: What is the role of the Microgrid Energy Cloud?
A: The Cloud platform enables remote, centralized monitoring and management of one or multiple storage systems. It provides advanced data analytics, performance reports, fault alerts, and can even facilitate fleet-wide optimization and participation in grid service programs, all accessible from a web-based dashboard.
