Product Introduction:

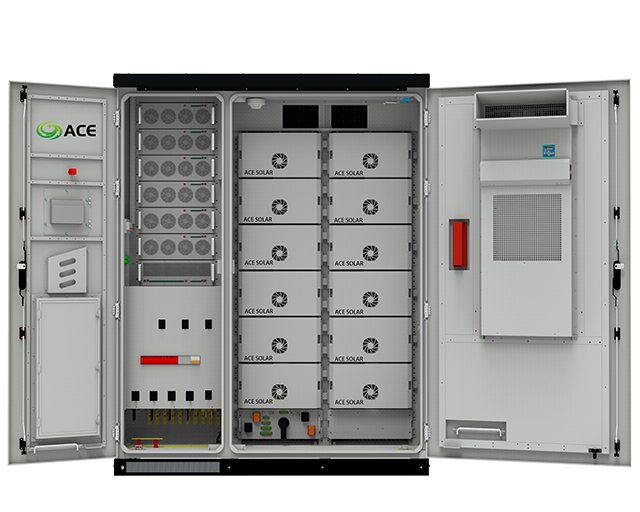

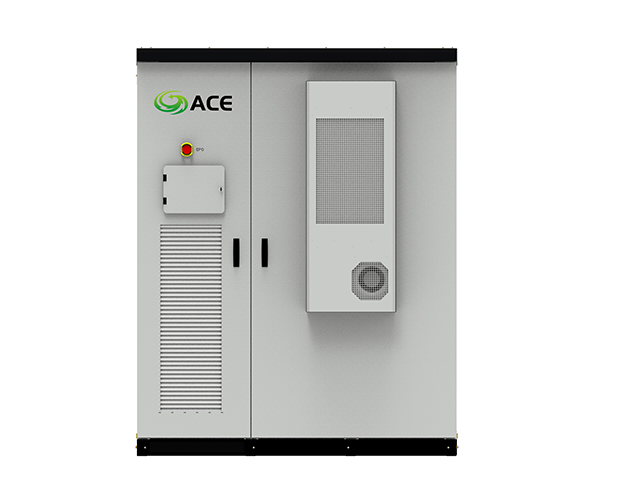

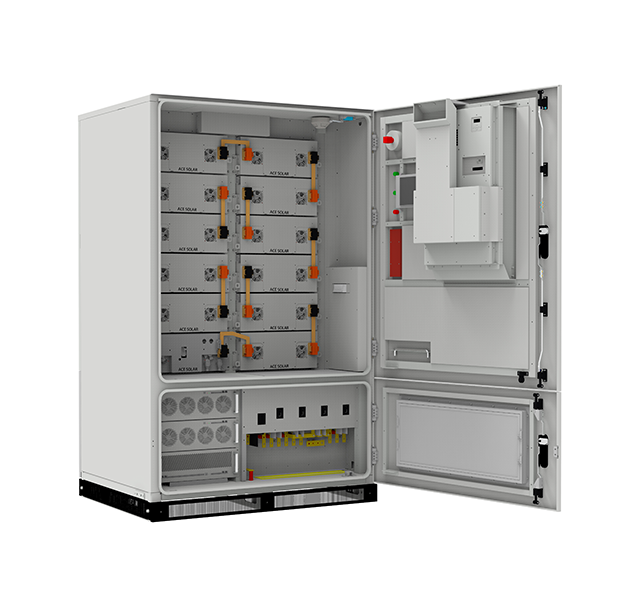

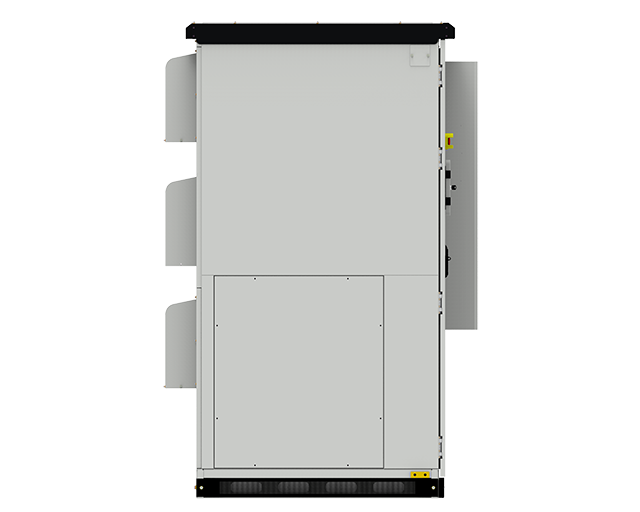

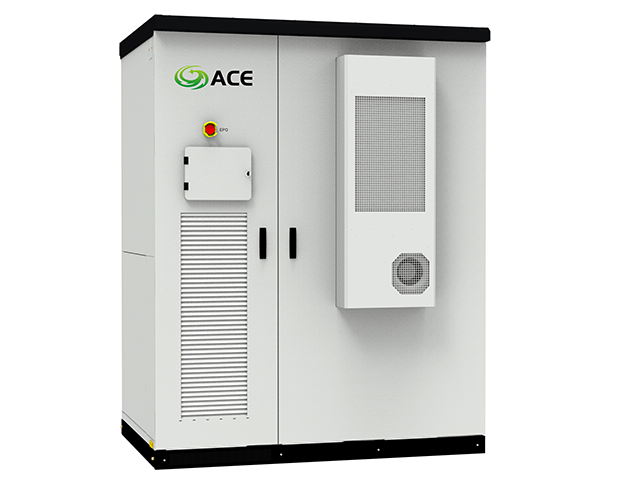

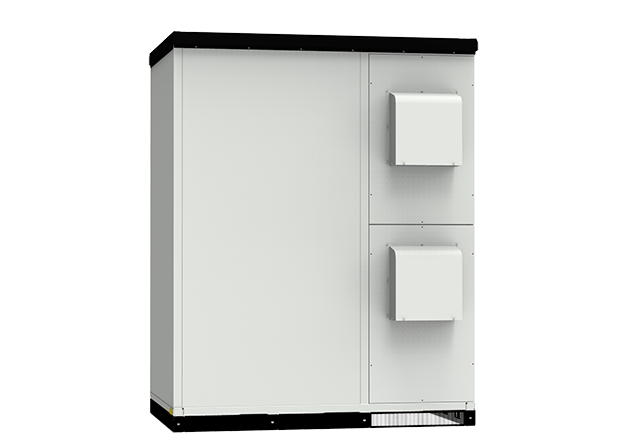

The Lithium Valley ACE Series is a cutting-edge, liquid-cooled Battery Energy Storage System (BESS) designed for demanding commercial and industrial environments. With a compact footprint and industry density (261kWh per cabinet), it integrates advanced safety mechanisms, robust environmental resilience, and flexible scalability. Its modular architecture supports seamless AC/DC expansion and multi-cluster management up to 1MW, enabling peak shaving, microgrid operation, and emergency backup with zero parallel capacity loss.
Key Advantages:
Ultra-Safe Operation: A+ grade LiFePO4 cells, multi-level fuses, aerosol fire suppression, and triple-stage hazard detection (active exhaust + passive explosion-proof).
Military-Grade Resilience: IP54 rating + C3/C5 corrosion resistance for harsh environments (high humidity, salt spray).
Plug-and-Play Deployment: Modular design, side-outlet cabling, and integrated liquid cooling simplify installation and maintenance.
Future-Proof Scalability: Flexible parallel expansion to 250kW, 500kW, or 1MW clusters without capacity degradation.
High Efficiency: 98.2% PCS efficiency, 8,000+ cycles @25°C, and 15-year design lifespan.
Technical Parameters:
| Category | Specification |
|---|---|
| Model | SC261L125-01M / SC261L100-01M |
| Nominal Energy | 261 kWh |
| Nominal Voltage | 832 V |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Cycle Life | ≥8,000 cycles (@25°C, 0.5C) |
| Rated Power (PCS) | 125 kW (SC261L125) / 100 kW (SC261L100, derated) |
| Dimensions (W×D×H) | 1300 × 1550 × 2090 mm |
| Weight | ≤2600 kg |
| Operating Temp. | -20°C to +55°C |
| IP Rating | IP54 |
| Cooling Method | Liquid Cooling (Battery) |
| Fire Suppression | Integrated aerosol system (rack/package level) |
| Compliance | IEC/EN 61000, IEC 62619, UN38.3, MSDS |
FAQ:
Q1: How much space does a 261kWh unit require?
A: The cabinet occupies just 1.3m × 1.55m footprint, ideal for space-constrained sites.
Q2: Is maintenance complex?
A: No. Modular design and side-access outlets enable tool-free component swaps and rapid servicing.
Q3: Can it operate in coastal areas?
A: Yes. C5 corrosion resistance and IP54 rating protect against salt spray and high humidity.
Q4: What is the expected lifespan?
A: 15-year design life with ≥8,000 cycles at 25°C, ensuring long-term ROI.
Q5: Does expansion require downtime?
A: No. Hot-swappable modules allow capacity additions without system shutdown.
