Product Description:

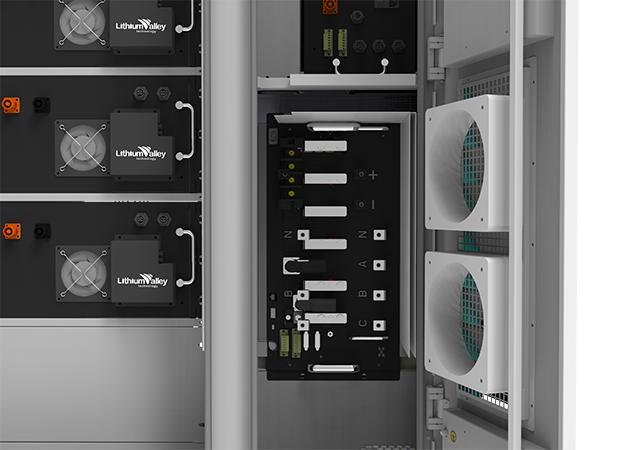

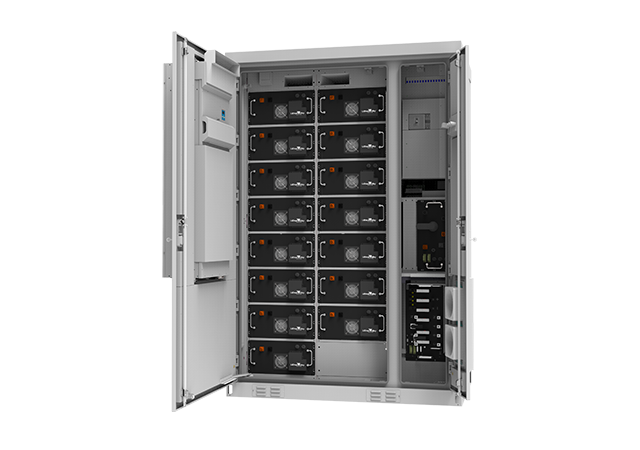

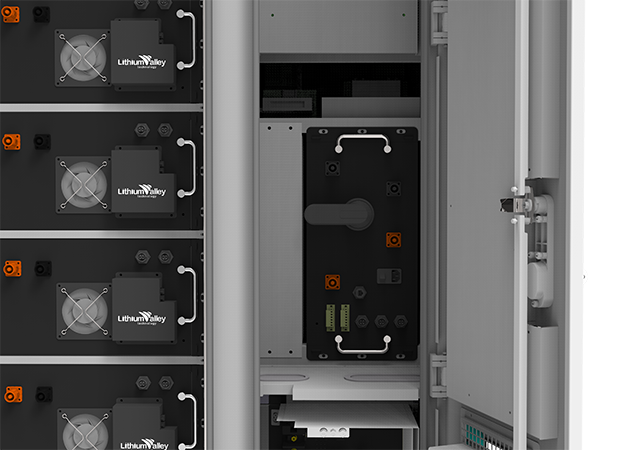

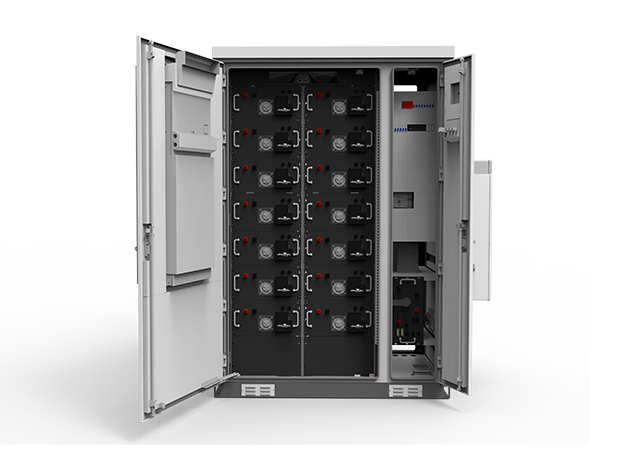

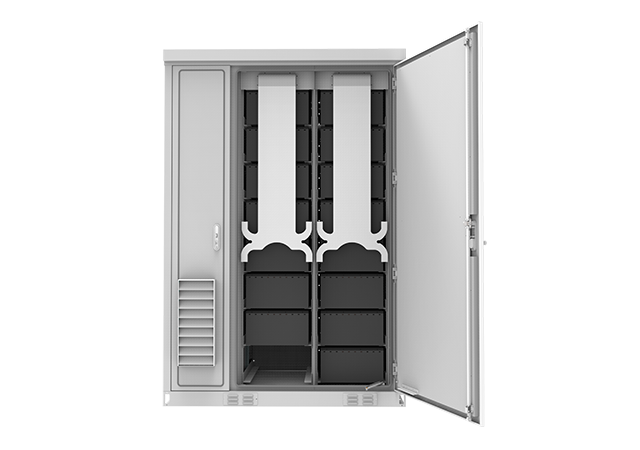

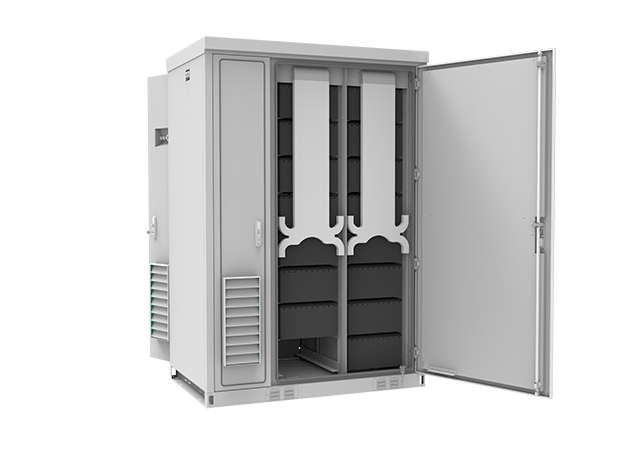

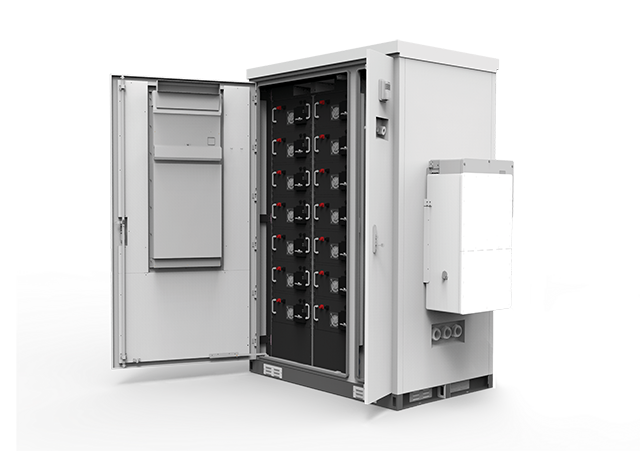

The ACE Solar ESSA0100B-0215 is a cutting-edge outdoor cabinet energy storage system engineered for commercial and industrial (C&I) applications. This all-in-one solution integrates PV input, battery storage (215kWh), and grid/DG connectivity into a single, compact cabinet. Designed for flexibility and reliability, it supports peak shaving, PV self-consumption, timed scheduling, and seamless on/off-grid switching. With robust safety features including built-in fire suppression and IP54 ingress protection, it ensures secure operation in diverse environments. The system’s intelligent air cooling, cloud-connected touchscreen display, and ≥6,000-cycle LFP battery make it ideal for remote, off-grid, or power-scarce areas.
Key Parameters Table:
| Category | Specification | NASA100T-215KWH/ESSA0100B-0215 |
|---|---|---|
| AC Data | Rated Power | 100 kW |
| Rated Voltage | 400 V | |
| Rated Current | 144 A | |
| Voltage Range | 320–460 V | |
| Frequency Range | 45–65 Hz | |
| THDi (on-grid) | <3% | |
| Power Factor | 1 leading ~ 1 lagging (settable) | |
| PV Data | Max. PV Input Voltage | 1,000 V |
| Max. PV Power | 120/180/240 kW | |
| MPPT Voltage Range | 250–850 V | |
| Battery Data | Cell Type | 3.2V/280Ah LFP |
| Rated Voltage | 768V (1P240S) | |
| Rated Energy | 215.04 kWh | |
| Operating Voltage Range | 672–850 V | |
| Max. Charge/Discharge Rate | 0.5C @ 25°C | |
| Cycle Life | ≥6,000 cycles | |
| General Data | Dimensions (W×D×H) | 2,460 × 1,560 × 2,425 mm |
| Weight | 3,900 kg | |
| Operating Temperature | 0 to +45°C | |
| Ingress Protection | IP54 | |
| Noise Emission | <75 dB | |
| Max. Operating Altitude | 5,000 m (>3,000 m derating) |
FAQs:
Q1: What is the lifespan of the battery?
A: The LFP battery supports ≥6,000 cycles at 0.5C discharge/charge rates.
Q2: Does it support hybrid grid/PV operation?
A: Yes, it enables seamless on/off-grid switching and simultaneous access to PV, grid, battery, and diesel generators.
Q3: What safety features are included?
A: IP54 protection, optional aerosol fire suppression (NOVEC1230), temperature monitoring, and system-wide fault alerts.
Q4: Can it operate in high-altitude regions?
A: Yes, up to 5,000 meters (derating required above 3,000 meters).
Q5: Is on-site assembly needed?
A: No. The system ships pre-assembled; only external wiring connections are required.
Q6: What communication interfaces are supported?
A: RS485 and TCP/IP for EMS integration and cloud monitoring.
