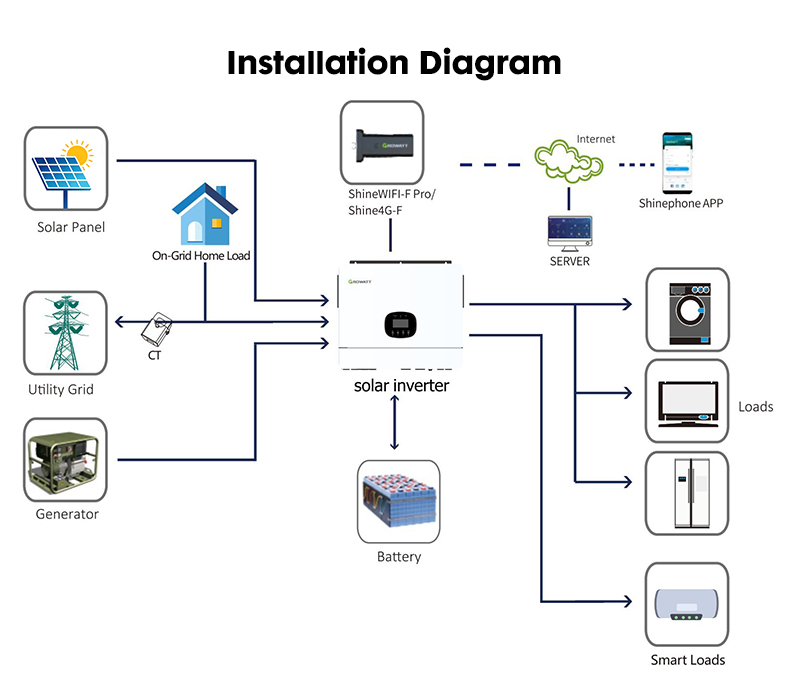

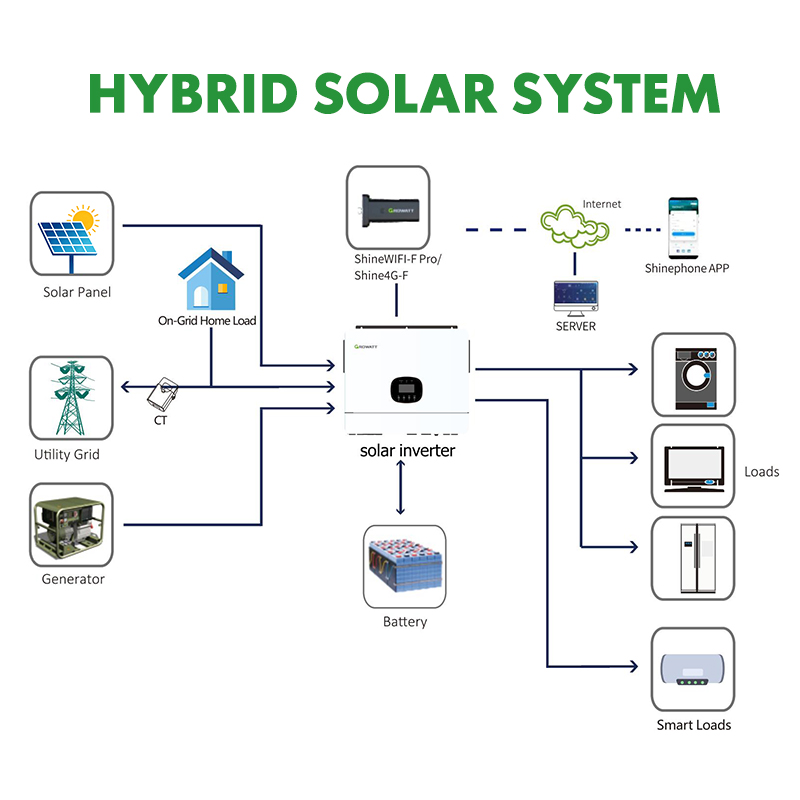

Multi-mode operation supporting on-grid, off-grid and EPS emergency backup. It achieves ultra-fast automatic switching within 20ms once grid power fails to continuously supply critical household loads. It also realizes peak shaving under grid-tied mode to lower monthly electricity expenses for residential energy storage systems.

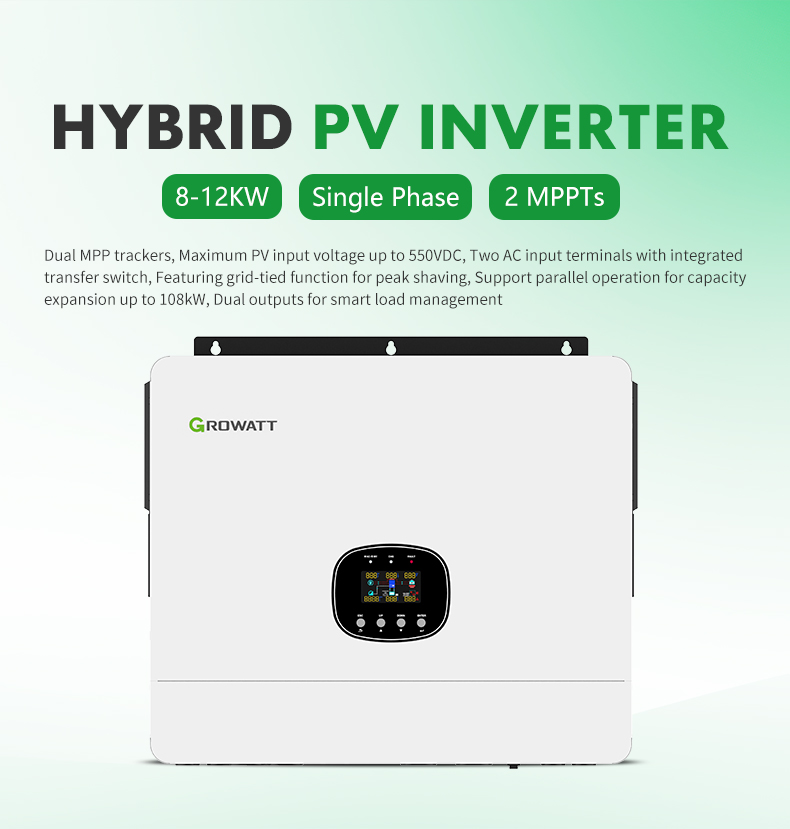

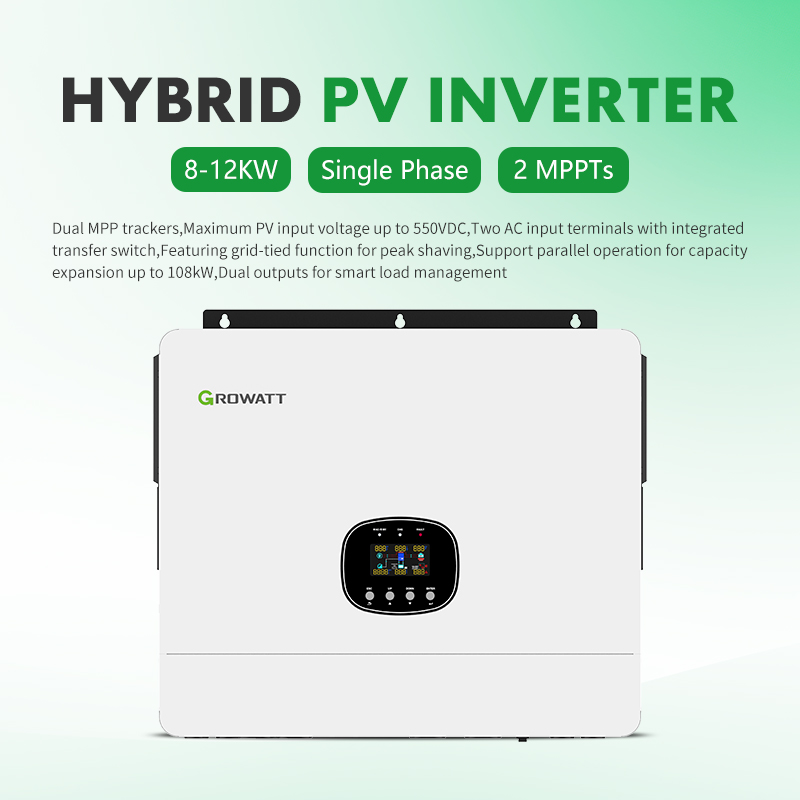

Equipped with independent dual MPPT trackers, maximum PV input voltage reaches 550VDC, peak conversion efficiency up to 96.5%. Adaptable to solar panels installed on rooftops with different orientations, maximizing solar energy harvest and improving self-consumption rate of photovoltaic power.
Adopts 48V low voltage design with wide battery compatibility, perfectly matching lithium iron phosphate batteries, lead-acid batteries and gel batteries. The inverter supports parallel connection of up to 9 units, allowing flexible capacity expansion to build larger household or small commercial storage power stations.

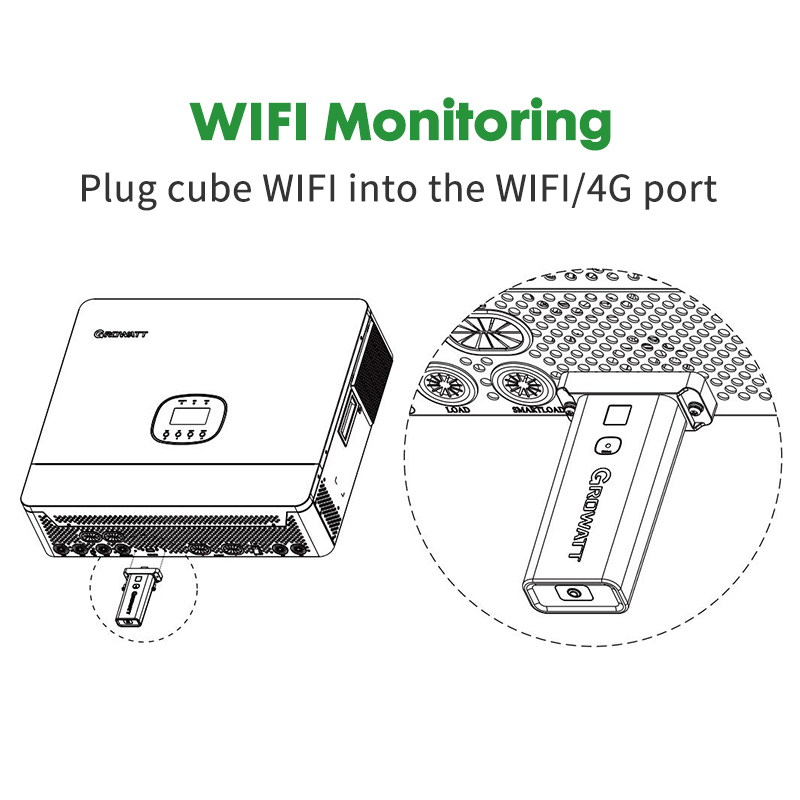

Built-in WiFi communication module, compatible with ShinePhone APP and cloud web monitoring platform. Users can remotely view real-time operating data, set charging & discharging time parameters and complete fault diagnosis anytime anywhere. An extra generator access port enables automatic generator start-stop control.
Single-phase 230V pure sine wave AC output with power factor up to 1.0. Multiple electronic protection functions including overvoltage, undervoltage, overload and short circuit protection. Obtained CE certification, stable performance and long service life, specially optimized for European residential solar storage projects.
