Brand: ACE
Product Type: Energy Storage Battery
Installation: Floor-Standing

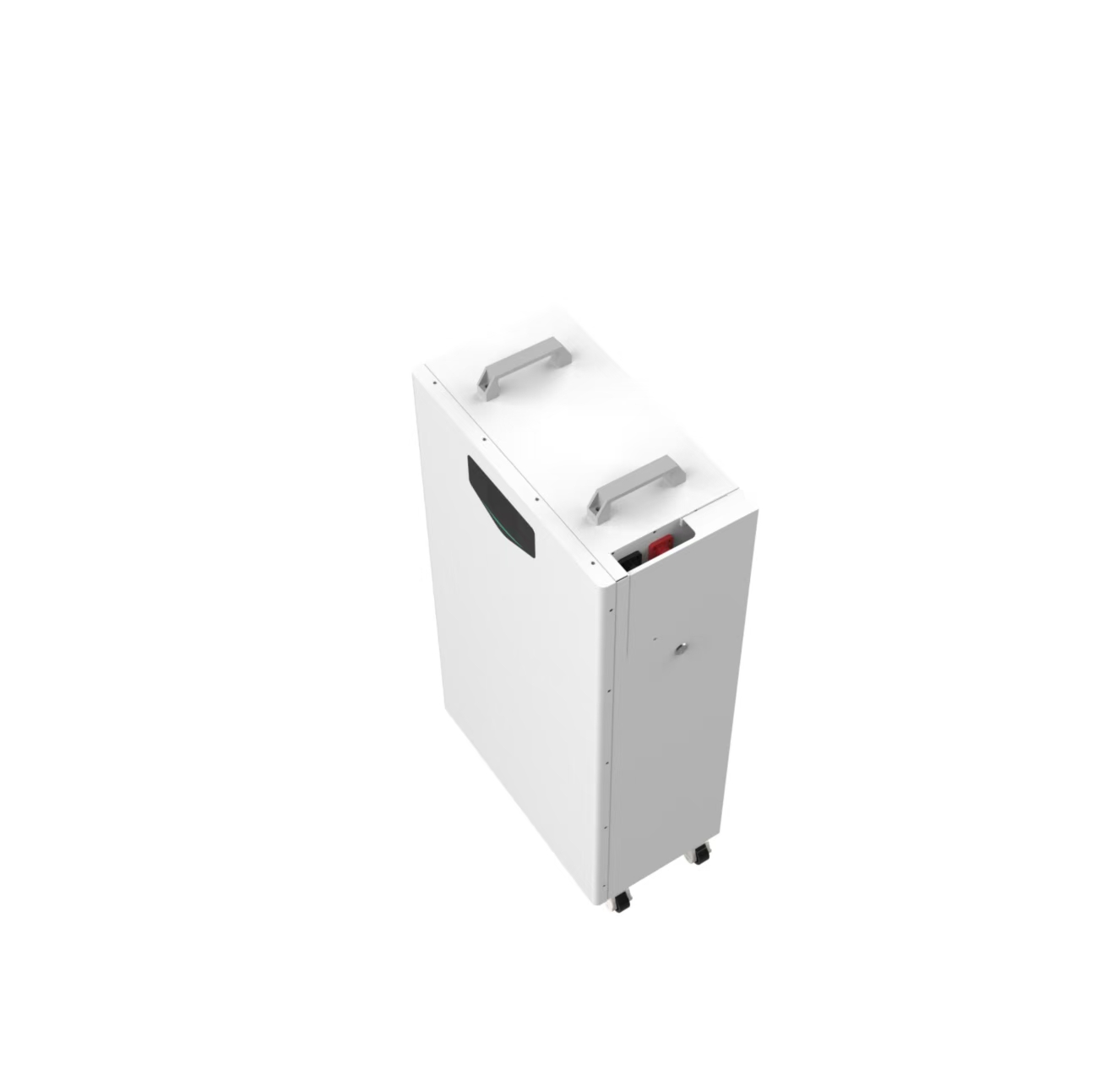

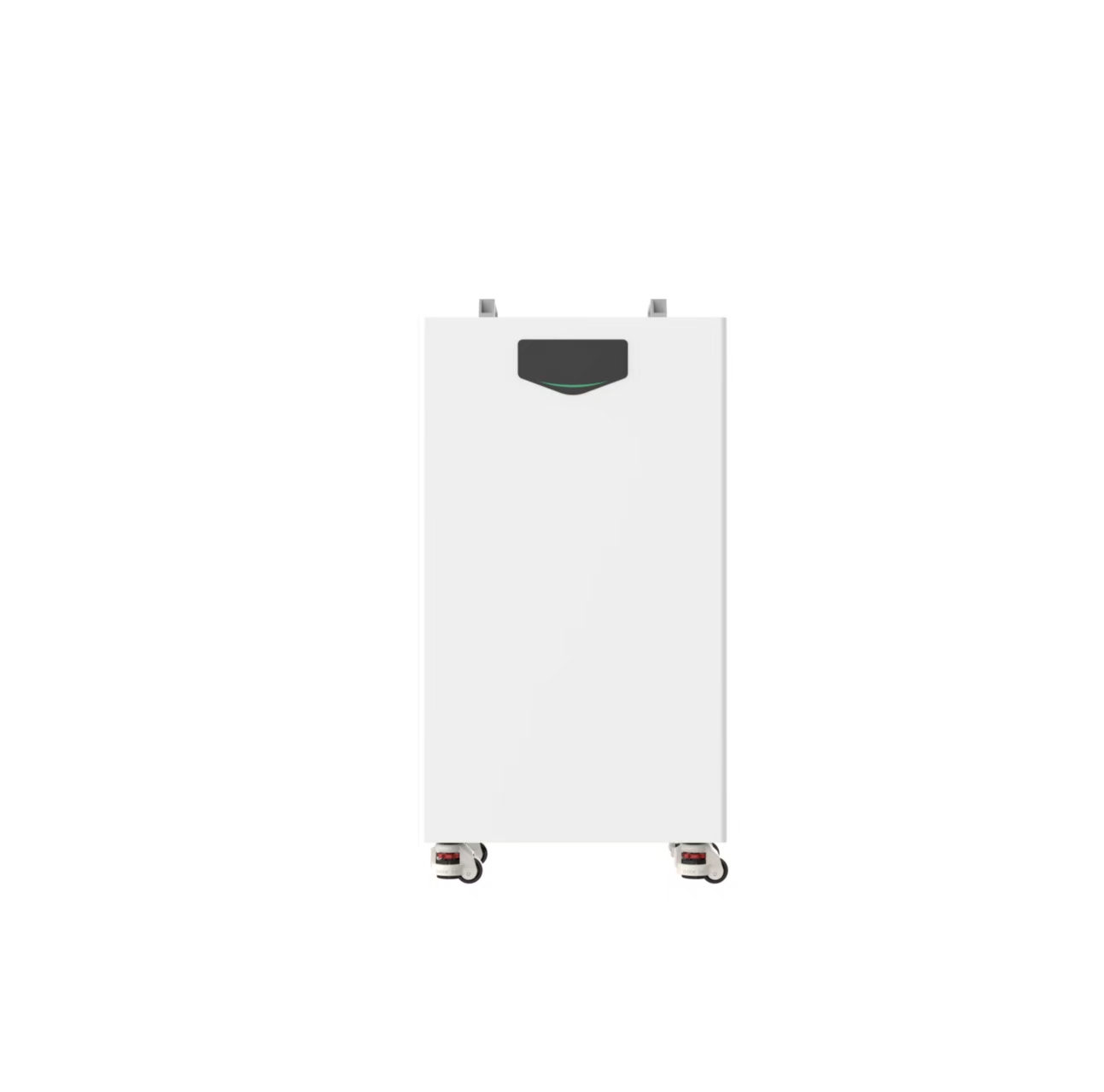

The AHYR M16S280-314BL-YV is a high-performance floor-standing energy storage battery. Powered by safe 280Ah/314Ah LiFePO4 cells, it delivers robust performance with IP21/IP65-rated resistance. The system is equipped with an intelligent BMS, supports parallel connection of up to 16 units for flexible capacity expansion, and is ideal for powering entire villas, large homes, and small commercial setups.

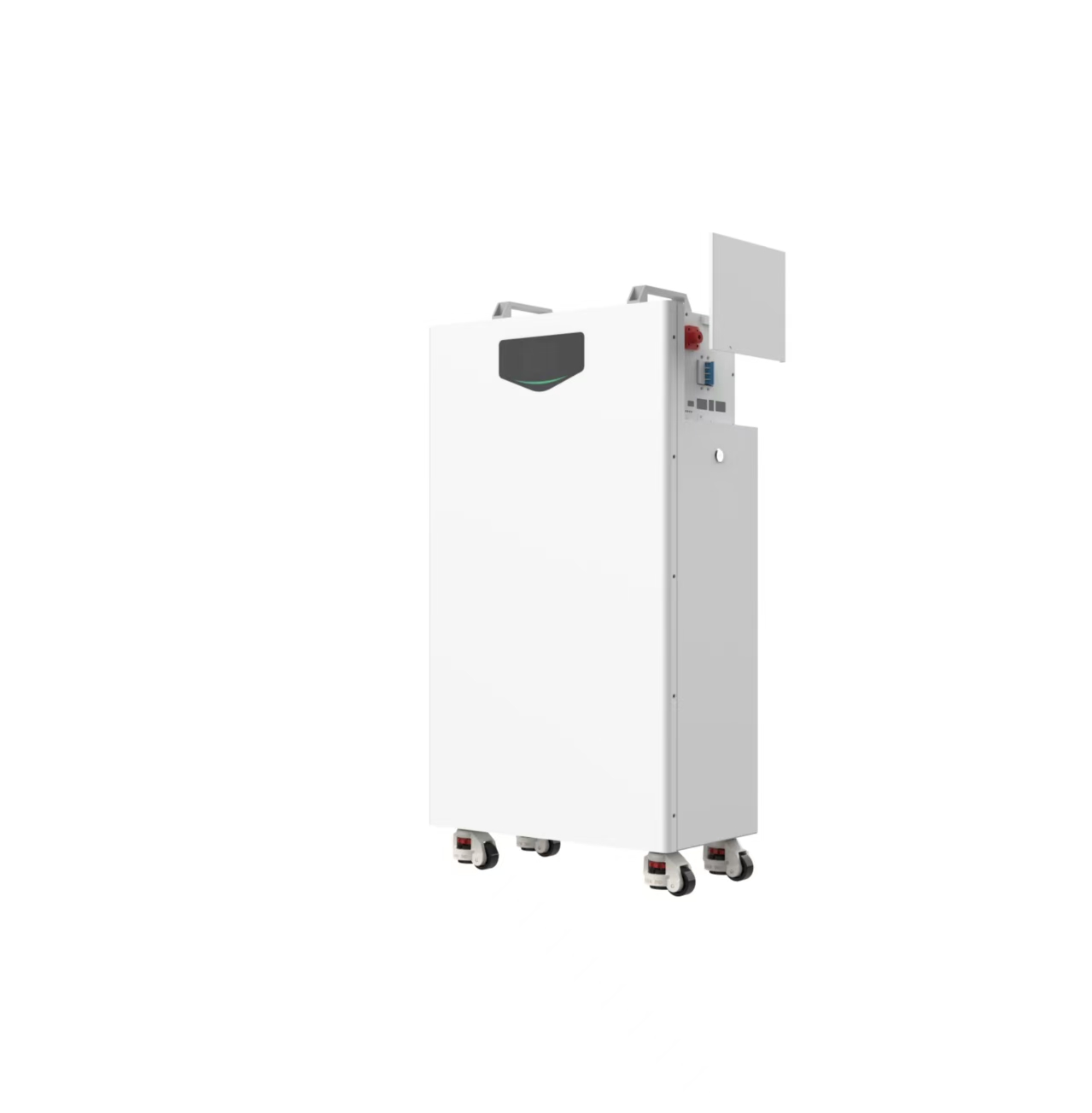

Easy Mobility
Mobility with four rollers, easily move and flexibly respond to different power needs. Provides global partners with power guarantee anytime and anywhere.
High-Capacity & Reliable System
Powered by 280Ah/314Ah safe LiFePO4 cells, it delivers robust performance with IP21/65-rated resistance, providing reliable electricity for battery systems.
Smart Integration
An intelligent BMS, efficient, safe operation and integration with home solar storage systems for your devices, leading the new era of efficiency.
Flexible Capacity Expansion Available
Connect up to 16 units in parallel to scale power on demand. This expandable system supplies ample energy to power entire villas, large homes and small commercial setups with ease.
Product Model | M16S280BL-YV | M16S314BL-YV | Units |
|---|---|---|---|
Cells In Series | 16S | 16S | |
Rated Energy | 14.336 | 16.07 | KWh |
Rated Voltage | 51.2 | 51.2 | V |
Charging Voltage | 58.4 | 58.4 | V |
Discharge Cut-off Voltage | 42 | 42 | V |
Standard Charge Current | 62 | 62 | A |
Maximum Charging Current | 200 | 200 | A |
Maximum Discharge Current | 200 | 200 | A |
Cycle Life | 25±2°C, 80% DOD, 0.5C/0.5P cycles ≥ 4000-6000 times / 80% SOH | 25±2°C, 80% DOD, 0.5C/0.5P cycles ≥ 4000-6000 times / 80% SOH | |
Methods of Communication | RS232 / RS485 / CAN | RS232 / RS485 / CAN | |
Charging Temperature | 0~60°C | 0~60°C | °C |
Discharge Temperature | -10~65°C | -10~65°C | °C |
Display | LCD display | LCD display | |
IP Protection | IP21 / IP65 | IP21 / IP65 | |
Product Dimensions (L×W×H) | 805 × 470 × 240 | 805 × 470 × 240 | mm |
Net Weight | ~117.1 | ~123.5 | Kg |
Packing Dimensions (L×W×H) | 960 × 525 × 420 | 960 × 525 × 420 | mm |
Gross Weight | ~137 | ~143.4 | Kg |
Product Model | M16S280BL-YV | M16S314BL-YV |
|---|---|---|
Optional | Bluetooth / WIFI / Circuit breaker | Bluetooth / WIFI / Circuit breaker |
Q: Can this battery be used in parallel? How many units can be connected in parallel?
A: Yes. This product supports flexible capacity expansion. Up to 16 units can be connected in parallel to meet higher power and capacity requirements.
Q: What is the cycle life of the battery?
A: Under standard test conditions (25±2°C, 80% depth of discharge, 0.5C charge/discharge rate), the battery can achieve 4,000 to 6,000 cycles, after which the battery state of health (SOH) remains above 80%.
Q: What is the protection rating of the battery? Can it be installed outdoors?
A: The battery has an IP21 and IP65 protection rating. The IP65 rating means it is dust-tight and protected against water jets, making it suitable for indoor use or well-protected outdoor environments. Please consult a professional installer for specific installation conditions.
Q: How do I monitor and manage the working status of the battery?
A: The battery is equipped with an intelligent BMS (Battery Management System) and an LCD display, allowing real-time monitoring of voltage, current, temperature, and other data. Additionally, you can optionally add Bluetooth or WIFI modules for remote monitoring and management via a smartphone or computer.
Q: What are the suitable application scenarios for this battery?
A: It is highly suitable for home photovoltaic energy storage systems (such as villas and large houses), as well as backup or primary power supply for small commercial sites. Its roller design also allows for easy movement, making it ideal for temporary or mobile power needs.
Q: What is the operating temperature range?
A: The charging temperature range is 0°C to 60°C, and the discharging temperature range is -10°C to 65°C.
